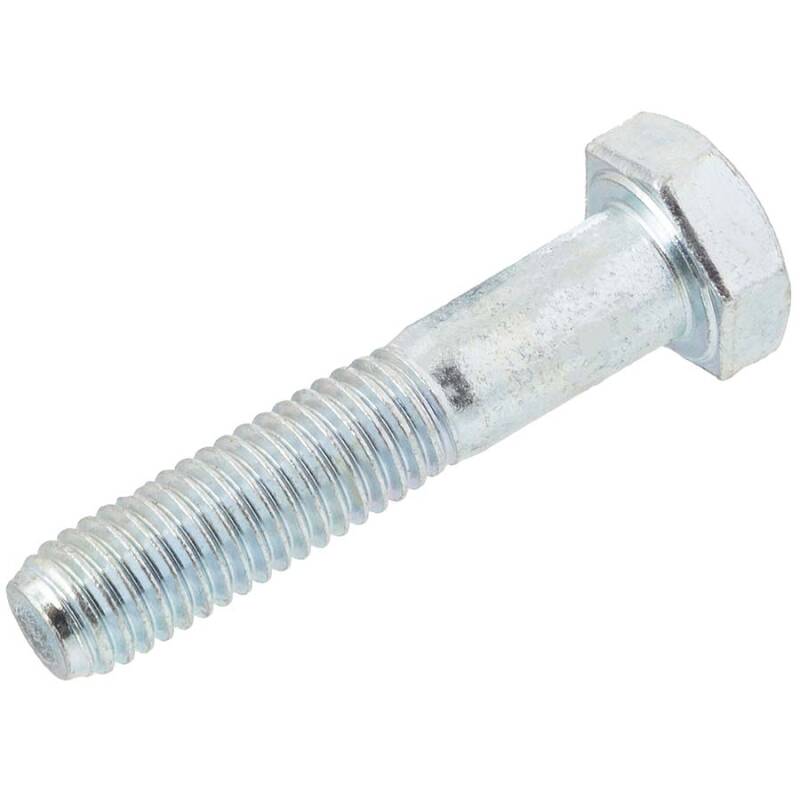

Zinc-coated steel hexagon head screw part.threaded DIN 931

SKU: VZ0931
Auswahl Steuerzone / Lieferland
Choose the variation
Zinc-coated steel
from
0,88 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
k
L
L1
S
Quality
Price
Quantity
VZ0931.016.070
M16 x 70mm
M16
10
70
38
24
8.8
0,88 €*
pc.:
VZ0931.016.080
M16 x 80mm
M16
10
80
38
24
8.8
0,98 €*
pc.:
VZ0931.016.090
M16 x 90mm
M16
10
90
38
24
8.8
1,23 €*
pc.:
VZ0931.016.100
M16 x 100mm
M16
10
100
38
24
8.8
1,19 €*
pc.:
VZ0931.016.110
M16 x 110mm
M16
10
110
38
24
8.8
1,25 €*
pc.:
VZ0931.016.120
M16 x 120mm
M16
10
120
38
24
8.8
1,38 €*
pc.:
VZ0931.016.130
M16 x 130mm
M16
10
130
44
24
8.8
1,48 €*
pc.:
VZ0931.016.140
M16 x 140mm
M16
10
140
44
24
8.8
1,52 €*
pc.:
VZ0931.016.150
M16 x 150mm
M16
10
150
44
24
8.8
0,92 €*
pc.:
VZ0931.016.160
M16 x 160mm
M16
10
160
44
24
8.8
1,79 €*
pc.:
VZ0931.016.170
M16 x 170mm
M16
10
170
44
24
8.8
2,24 €*
pc.:
VZ0931.020.090
M20 x 90mm
M20
12,5
90
46
30
6.8
1,82 €*
pc.:
VZ0931.020.100
M20 x 100mm
M20
12,5
100
46
30
6.8
1,86 €*
pc.:
VZ0931.020.120
M20 x 120mm
M20
12,5
120
46
30
6.8
2,31 €*
pc.:
VZ0931.020.130
M20 x 130mm
M20
12,5
130
52
30
8.8
1,45 €*
pc.:
VZ0931.020.140
M20 x 140mm
M20
12,5
140
52
30
8.8
2,63 €*
pc.:
VZ0931.020.150
M20 x 150mm
M20
12,5
150
52
30
6.8
2,61 €*
pc.:
VZ0931.020.170
M20 x 170mm
M20
12,5
170
52
30
6.8
1,47 €*
pc.:
VZ0931.020.190
M20 x 190mm
M20
12,5
190
52
30
8.8
3,44 €*
pc.:
VZ0931.020.210
M20 x 210mm
M20
12,5
210
65
30
8.8
2,19 €*
pc.:
VZ0931.020.220
M20 x 220mm
M20
12,5
220
65
30
8.8
4,77 €*
pc.:
VZ0931.020.230
M20 x 230mm
M20
12,5
230
65
30
8.8
2,34 €*
pc.:
VZ0931.020.240
M20 x 240mm
M20
12,5
240
65
30
8.8
2,65 €*
pc.:
VZ0931.020.250
M20 x 250mm
M20
12,5
250
65
30
6.8
2,67 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Sechskantschraube DIN 931  verzinkt

Durchmesser:
siehe Tabelle
Länge:
siehe Tabelle
Material:
Stahl verzinkt - Qualität 8.8
Norm:
DIN 931
Qualität:
galv. verzinkt
Gewinde:
Regelgewinde
Farbe:
Grau Stahl
