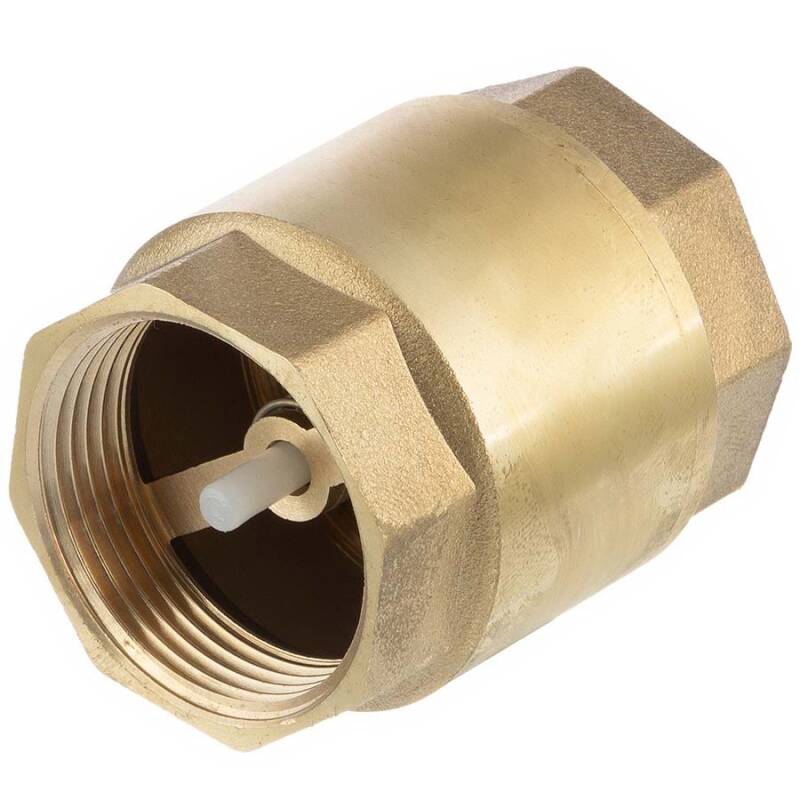

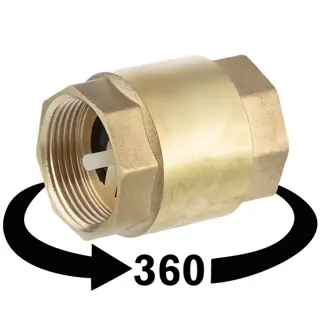

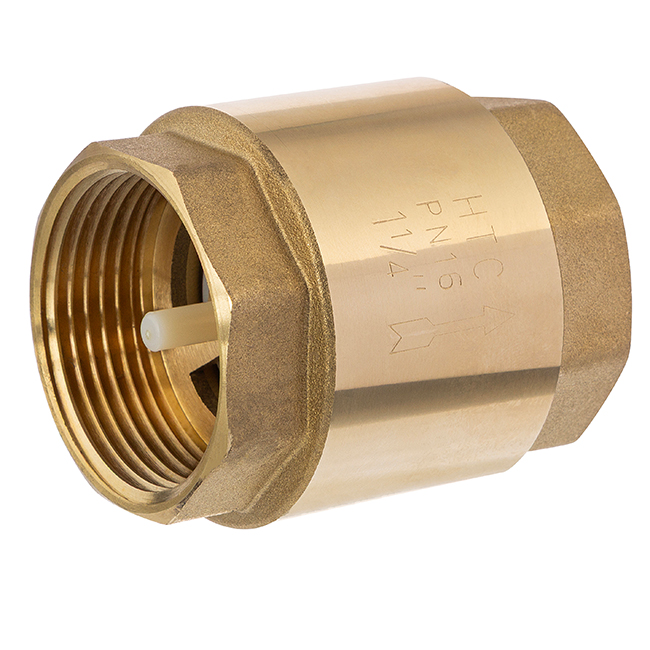

Brass check valve type "York" with plastic lock, female thread

SKU: MAKU11
Auswahl Steuerzone / Lieferland
from
2,80 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(15) { ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(34) "Messing_Rückschlagventil_Typ-York" ["bild_abmessungen"]=> string(39) "/bilder/abmessungen/M-011_Zeichnung.jpg" ["hat_3d_bilder"]=> string(1) "1" ["dimension_0400_l"]=> string(0) "" ["dimension_0140_d"]=> string(0) "" ["dimension_0720_t"]=> string(0) "" ["dimension_0142_d"]=> string(0) "" ["dimension_0010_variante"]=> string(22) "
10er Pack" ["dimension_0288_g"]=> string(8) "" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "2px" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
d
G
L
t
Price
Quantity
MAKU11.000.020
1/2"
Stück
33
15
1/2" (20,96mm)
43
9
2,80 €*
pc.:
MAKU11.000.020-15
1/2"
15er Pack
33
15
1/2" (20,96mm)
43
9
33,56 €*
2,24 € per pc.
MAKU11.000.025
3/4"
Stück
42,5
17
3/4" (26,44mm)
50
12
3,09 €*
pc.:
MAKU11.000.025-12
3/4"
12er Pack
42,5
17
3/4" (26,44mm)
50
12
29,70 €*
2,48 € per pc.
MAKU11.000.032
1"
Stück
47,5
23
1" (33,25mm)
50
12
4,70 €*
pc.:
MAKU11.000.032-08
1"
8er Pack
47,5
23
1" (33,25mm)
50
12
30,08 €*
3,76 € per pc.
MAKU11.000.040
1 1/4"
Stück
52,5
31
1 1/4" (41,91mm)
62
14
9,10 €*
pc.:
MAKU11.000.040-08
1 1/4"
8er Pack
52,5
31
1 1/4" (41,91mm)
62
14
58,26 €*
7,28 € per pc.
MAKU11.000.050
1 1/2"
Stück
65
34
1 1/2" (47,81mm)
66
17
11,19 €*
pc.:
MAKU11.000.050-05
1 1/2"
5er Pack
65
34
1 1/2" (47,81mm)
66
17
44,74 €*
pc.:
MAKU11.000.063
2"
Stück
68
45
2" (59,61mm)
72,5
17
14,26 €*
pc.:
MAKU11.000.063-04
2"
4er Pack
68
45
2" (59,61mm)
72,5
17
45,60 €*
11,40 € per pc.

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass Check Valve Type "York", 2x Female Thread

Connection:
2x Female Thread DIN 259
Material:
Brass CW61N (suitable for drinking water pipes)
Application:
suitable for cold and hot water
Temperature:
0°C to 100°C
Working pressure (PN):
60°C max. 16 bar (10 bar from 1 1/4") | 80°C max. 8 bar
Material:
Brass MS 58 | CW614N (see detailed description)
Color:
Brass
Check Valve
No.
Part
Material
1
Body
Brass
2
Counterpart
Brass
3-1
Core
Nylon
4
Seal
NBR
