IBC container coupling S60*6 with male socket

SKU: IB0007
Auswahl Steuerzone / Lieferland
from
4,52 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
B1
D
DN
G
H
Price
Quantity
IBC container coupling S60*6 with male socket
IB0007.060.032
S60*6 x 32mm
23
123
32
26
S60*6
73
4,52 €*
pc.:
IBC container coupling S60*6 with male socket
IB0007.060.050
S60*6 x 50mm
23
129
50
42
S60*6
73
5,52 €*
IBC container coupling S60*6 with male socket
IB0007.100.032
S100*8 x 32mm
85
188
32
26
S100*8
117
11,09 €*
pc.:
IBC container coupling S60*6 with male socket
IB0007.100.050
S100*8 x 50mm
85
186
50
42
S100*8
117
12,09 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

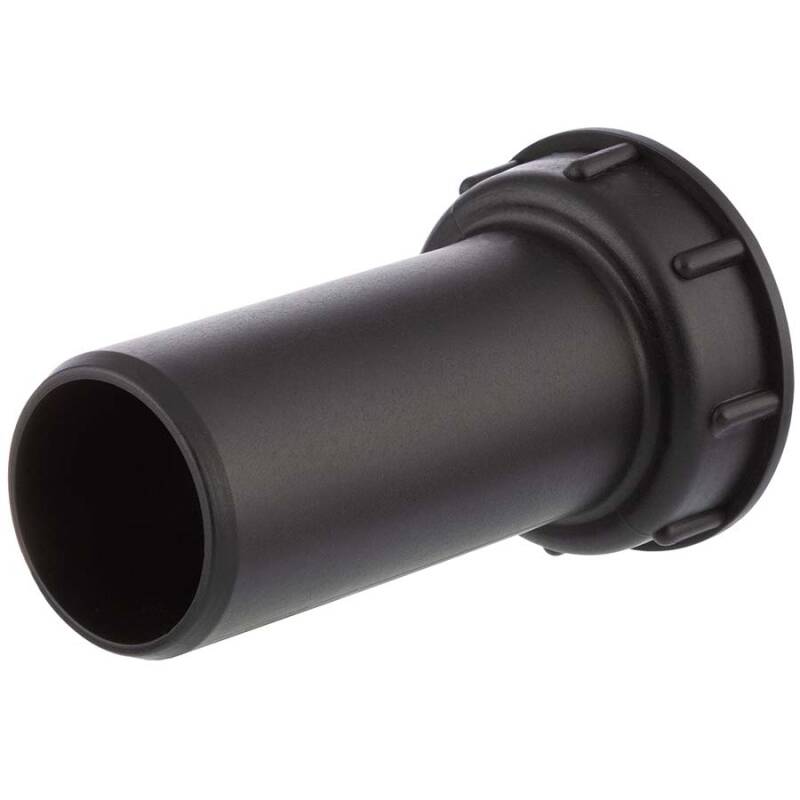

IBC container coupling S60*6 with male socket

When it has to be precise: perfectly positionable connection - no more leakage problems - no more positioning problems

Do you need a precisely positionable PP clamping angle outlet from your container? Only - if the connection is tight, the angle of the compression fitting does not fit?

Those days are over!

With the new perfectly positionable IBC container connection S60*6 fromHTC Logo your project is always in the perfect position and without exposed seals, which crumble over time under UV radiation.

The facts:

  • Position of the angle connection can be easily corrected or completely dismantled at any time
  • No exposed seals that slowly crumble under UV radiation
  • No additional sealing work
  • with the "plug & work" IBC container connection S60*6 from HTC Logo
Connection:
IBC coarse thread S60*6 x male socket
Temperature:
constant up to 60°C, briefly 80°C
Quality:
UV-stable
Material:
PP Polypropylen
Gasket S60*6:
PU foam flat gasket
Color:
Black
Processing instructions:
the connection piece with external thread must be flat. Compensating for edge damage by unscrewing the connection as far as possible can put the cover part under pressure so that it tears off the threaded part - this can also happen at a later date when the material fatigue is final.

IBC container connection sizes


IBC Containeranschluss S60*6

Anschlussgröße

S60*6 DN50 (2") Grobgewinde

S60 (2,36") Gewinde Aussenmaß 60mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S75*6

Anschlussgröße

S75*6 DN50 (2") Grobgewinde

S75 (2,95") Gewinde Aussenmaß 75mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S80*6

Anschlussgröße

S80*6 DN50 (2") Grobgewinde

S80 (3,15") Gewinde Aussenmaß 80mm
6mm (0,24") Gewindesteigung


IBC Containeranschluss S100*8

Anschlussgröße

S100*8 DN80 (3") Grobgewinde

S100 (3,94") Gewinde Aussenmaß 100mm
8mm (0,32") Gewindesteigung

DOWNLOADRoHS Bestätigung HTC
DOWNLOADIBC Anschluss Stutzen Bauanleitung
DOWNLOADdie Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
