IBC container coupling with CAMLOCK joint

SKU: KL1000
Auswahl Steuerzone / Lieferland
from
1,61 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
DN
G
H
L
L1
Price
Quantity
IBC container coupling with CAMLOCK joint
KL0010.060.025
S60*6 x 3/4"
32
21
S60*6
76
59
29
1,61 €*
pc.:
IBC container coupling with CAMLOCK joint
KL1000.060.032
S60*6 x 1"
37
23
S60*6
78
67
29
1,61 €*
pc.:
IBC container coupling with CAMLOCK joint
KL0010.060.040
S60*6 x 1 1/4"
45
30
S60*6
76
69
29
1,68 €*
pc.:
IBC container coupling with CAMLOCK joint
KL0010.060.050
S60*6 x 1 1/2"
53
36,5
S60*6
78
70
29
1,73 €*
pc.:
IBC container coupling with CAMLOCK joint
KL1000.060.063
S60*6 x 2"
63
46
S60*6
76
77
29
1,84 €*
pc.:

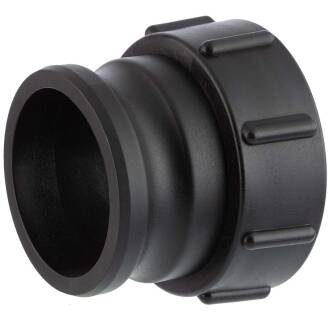

IBC container connection S100*8 to Kamlok male 2"
KL1000.100.063
S100*8 x 2"
63
44
S100*8
117
96
39
4,93 €*
pc.:
IBC container coupling with CAMLOCK joint
KL1000.100.092
S100*8
92 (3" MIL-Norm)
63
S100*8
118
90
40
4,93 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Kamlock PP Reinforced Special Connection IBC Container Connection to Kamlock Male Part

Special connection for direct connection to an IBC container connection S60*6 or S100*8

Connection:
Internal thread x Kamlock
Thread type see table
Temperature:
up to 60°C constant, temporarily 80°C
Working Pressure (PN):
3/4"/1": max. 8 bar | 1 1/4" - 2": max. 6 bar
Material:
Reinforced Polypropylene
Gasket:
PU Foam Flat Gasket
Color:
Black UV-resistant
  1. Plug (Male Part) Reinforced Polypropylene
  2. Coupling (Female Part) Reinforced Polypropylene
  3. Pin Galvanized Steel
  4. Flat Gasket
    NBR
  5. Lever V2A Stainless Steel
  6. Ring Anodized Steel

IBC Container Connection Sizes


IBC Container Connection S60*6

Connection Size

S60*6 DN50 (2") Coarse Thread

S60 (2.36") Thread outer dimension 60mm
6mm (0.24") Thread pitch


IBC Container Connection S75*6

Connection Size

S75*6 DN50 (2") Coarse Thread

S75 (2.95") Thread outer dimension 75mm
6mm (0.24") Thread pitch


IBC Container Connection S80*6

Connection Size

S80*6 DN50 (2") Coarse Thread

S80 (3.15") Thread outer dimension 80mm
6mm (0.24") Thread pitch


IBC Container Connection S100*8

Connection Size

S100*8 DN80 (3") Coarse Thread

S100 (3.94") Thread outer dimension 100mm
8mm (0.32") Thread pitch

DOWNLOADRoHS Confirmation HTC
DOWNLOAD The Thread Identification - or why 1" is not 25.4mm
DOWNLOADPP Polypropylene Temperature/Pressure Diagram
DOWNLOADChemical Resistance of Plastics
