Variants

Product picture
Item no.
Variation
B
l/h
G
H
L
Price
Quantity

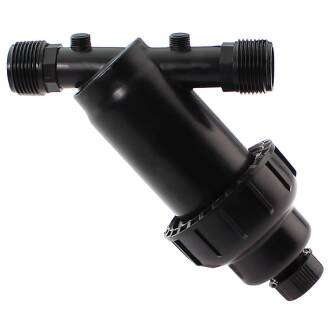

PP Y-filter with male thread and drain Irritec type D 3/4" stainless steel
YFD200.EDL.025
3/4" Edelstahlnetz
89
5000
3/4" (26,44mm)
138
152
7,62 €*
PP Y-filter with male thread and drain Irritec type D 1" stainless steel
YFD200.EDL.032
1" Edelstahlnetz
89
5000
1" (33,25mm)
138
152
7,88 €*
pc.:
PP Y-filter with male thread and drain Irritec type E 1 1/4" stainless steel
YFD200.EDL.040
1 1/4" Edelstahlnetz
103
10000
1 1/4" (41,91mm)
152
220
12,39 €*
pc.:
PP Y-filter with male thread and drain Irritec type E 1 1/2" stainless steel
YFD200.EDL.050
1 1/2" Edelstahlnetz
103
10000
1 1/2" (47,81mm)
152
220
12,51 €*
pc.:
PP Y-filter with male thread and drain Irritec type D 3/4" disk
YFD200.SCH.025
3/4" Scheibenfilter
84
5000
3/4" (26,44mm)
138
152
10,65 €*
pc.:
PP Y-filter with male thread and drain Irritec type D 1" disk
YFD200.SCH.032
1" Scheibenfilter
87
5000
1" (33,25mm)
138
152
10,79 €*
pc.:
PP Y-filter with male thread and drain Irritec type E 1 1/4" disk
YFD200.SCH.040
1 1/4" Scheibenfilter
103
10000
1 1/4" (41,91mm)
152
220
18,15 €*
pc.:
PP Y-filter with male thread and drain Irritec type E 1 1/2" disk
YFD200.SCH.050
1 1/2" Scheibenfilter
103
10000
1 1/2" (47,81mm)
152
220
18,24 €*
PP Y-filter with male thread and drain Irritec type D stainless steel net incl. 2 gaskets 1"
YFD232.ERS.EDL
Filtereinsatz Edelstahlnetz 120 mesh für 1"
---
---
---
---
---
6,99 €*
pc.:
PP Y-filter with male thread and drain Irritec type D Disk filter 1"
YFD232.ERS.SCH
Ersatzscheibenfilter für 1"
---
---
---
---
---
13,20 €*
pc.:
PP Y-filter with male thread and drain Irritec type E stainless steel cartridge 1 1/2"
YFD250.ERS.EDL
Filtereinsatz Edelstahlnetz 120 mesh für 1 1/2"
---
---
---
---
---
11,66 €*
pc.:
PP Y-filter with male thread and drain Irritec type E Disk cartridge 1 1/2"
YFD250.ERS.SCH
Ersatzscheibenfilter für 1 1/2"
---
---
---
---
---
15,01 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Y-Filter mit Ablassmöglichkeit, 2fach Aussengewinde

  • incl. Filterpatrone Edelstahlnetz 120 Mesh oder Scheibenfilter 120 Mesh (nach Auswahl)
  • PPFV Schwarz, UV-stabilisiert
  • max. Arbeitsdruck 8 bar bei 20°C Medium Wasser
  • 3/4" Außengewinde incl. Kappe



Hinweis: Bei Einsatz eines Scheibenfilters ist eine Rückspülung direkt über die Ablassöffnung nicht möglich.






Druckverlust



YF0200 Irritec Y-Filter Druckverlust









DOWNLOAD Die Gewindekennung - oder warum 1" eben keine 25,4mm sind
