PVC-U Reinforced Transition Socket, Female /Male Socket x Female Thread

PVC-U Reinforced Transition Socket, Female /Male Socket x Female Thread

SKU: AF0351

Auswahl Steuerzone / Lieferland

from

1,30 €

incl. 19% VAT , plus

Available immediately

View item details in PDF

How to measure a threaded fitting

3D View

This item has variations. Please select the requested variation.

Available immediately

Variants

Item no.

Variation

Price

Quantity

AF0351.012.016

12/16mm x 3/8"

3/8" (16,66mm)

14,5

13,5

1,30 €^*

AF0351.016.012

12/16mm x 1/4"

1/4" (13,66mm)

15,5

1,30 €^*

AF0351.016.016

16/20mm x 3/8"

3/8" (16,66mm)

14,5

15,5

1,30 €^*

AF0351.016.025

16/20mm x 3/4"

3/4" (16,44mm)

16,5

15,5

1,37 €^*

AF0351.025.020

25/20mm x 1/2"

1/2" (20,96mm)

40,5

1,33 €^*

AF0351.025.025

25/20mm x 3/4"

3/4" (26,44mm)

1,42 €^*

AF0351.025.032

25/20mm x 1"

1" (33,25mm)

45,5

20,5

1,67 €^*

AF0351.032.020

32/25mm x 1/2"

1/2" (20,96mm)

43,5

18,5

22,5

1,50 €^*

AF0351.032.025

32/25mm x 3/4"

3/4" (26,44mm)

1,55 €^*

AF0351.032.032

32/25mm x 1"

1" (33,25mm)

22,5

2,00 €^*

AF0351.032.040

32/25mm x 1 1/4"

1 1/4" (41,91mm)

51,5

22,5

2,39 €^*

AF0351.040.020

40/32mm x 1/2"

1/2" (20,96mm)

47,5

3,72 €^*

AF0351.040.032

40/32mm x 1"

1" (32,25mm)

26,5

2,19 €^*

AF0351.040.025

40/32mm x 3/4"

3/4" (26,44mm)

1,90 €^*

AF0351.040.040

40/32mm x 1 1/4"

1 1/4" (41,91mm)

2,32 €^*

AF0351.040.050

40/32mm x 1 1/2"

1 1/2" (47,81mm)

55,5

2,51 €^*

AF0351.050.032

50/40mm x 1"

1" (33,25mm)

26,5

30,5

3,88 €^*

AF0351.050.040

50/40mm x 1 1/4"

1 1/4" (41,91mm)

59,5

2,71 €^*

AF0351.050.050

50/40mm x 1 1/2"

1 1/2" (47,81mm)

59,5

3,24 €^*

AF0351.050.063

50/40 x 2"

2" (59,61mm)

3,67 €^*

AF0351.063.032

63/50mm x 1"

1" (33,25mm)

66,5

31,5

37,5

7,21 €^*

AF0351.063.040

63/50mm x 1 1/4"

1 1/4" (41,91mm)

37,5

7,52 €^*

AF0351.063.050

63/50mm x 1 1/2"

1 1/2" (47,81mm)

66,5

4,20 €^*

AF0351.063.063

63/50mm x 2"

2" (59,61mm)

70,5

37,5

4,39 €^*

AF0351.063.075

50/63mm x 2 1/2"

2 1/2" (75,18mm)

11,57 €^*

AF0351.075.075

75/90mm x 2 1/2"

2 1/2" (75,18mm)

91,5

30,5

44,5

50,5

13,59 €^*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

Description

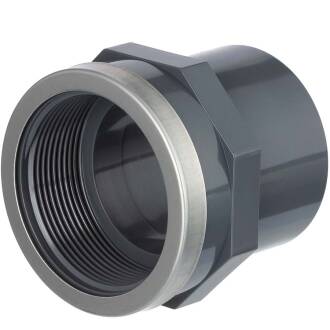

PVC-U Reinforced Transition Socket, Female /Male Socket x Female Thread

Connection:

Female Socket/Male Socket x Reinforced Female Thread

Thread:

BSP thread type G, not self-sealing, seal with PTFE tape or similar.

Temperature:

up to 45 °C constant, temporarily up to 60 °C

Operating pressure (PN):

max. 16 bar at 20 °C (medium: water)

Material:

PVC-U (Unplasticized Polyvinyl Chloride)

Reinforcement ring:

Stainless steel AISI 304

Color:

Grey

PVC-U Reinforced Transition Female Socket Detail 1

PVC-U Transition Female Socket – Inserted into a Socket

The PVC-U transition female socket features two bonding dimensions opposite the internal thread. The outer (larger) dimension corresponds to the male socket size, allowing the fitting to be glued into a matching female socket to create a reinforced female thread connection.

PVC-U Reinforced Transition Female Socket Detail 2

PVC-U Transition Female Socket – Over Male Socket or Pipe

This version allows PVC-U adhesive pipes or fittings with a matching male socket dimension to be provided with a reinforced female thread. The male socket or pipe matches the inner dimension (female socket) of the PVC-U transition fitting.

DOWNLOAD RoHS confirmation HTC

DOWNLOAD Bonding of PVC-U pipes and fittings

DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm

DOWNLOAD Sealing and connecting plastic threads

DOWNLOAD Chemical resistance of plastics

DOWNLOAD External characteristics of injection-moulded fittings
