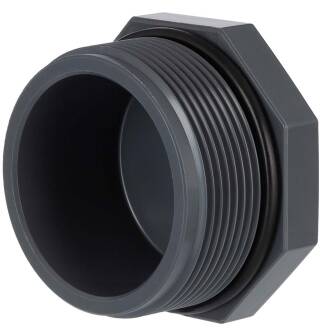

PVC-U end cap threaded plug external thread with O-ring

from
0,56 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
D
G
L
L1
Price
Quantity
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.020
1/2"
27
1/2" (20,96mm)
23,5
13,5
0,56 €*
pc.:
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.025
3/4"
32
3/4" (26,44mm)
26
16,5
0,58 €*
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.040
1 1/4"
46
1 1/4" (41,91mm)
34
20,5
1,00 €*
pc.:
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.050
1 1/2"
55
1 1/2" (47,81mm)
34
20,5
1,40 €*
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.063
2"
65
2" (59,61mm)
39
25
2,20 €*
pc.:
PVC-U end cap threaded plug external thread with O-ring
AF0807.000.075
2 1/2"
80
2 1/2" (75,18mm)
44
29
3,39 €*
pc.:

incl. 19% VAT , plus shipping costs

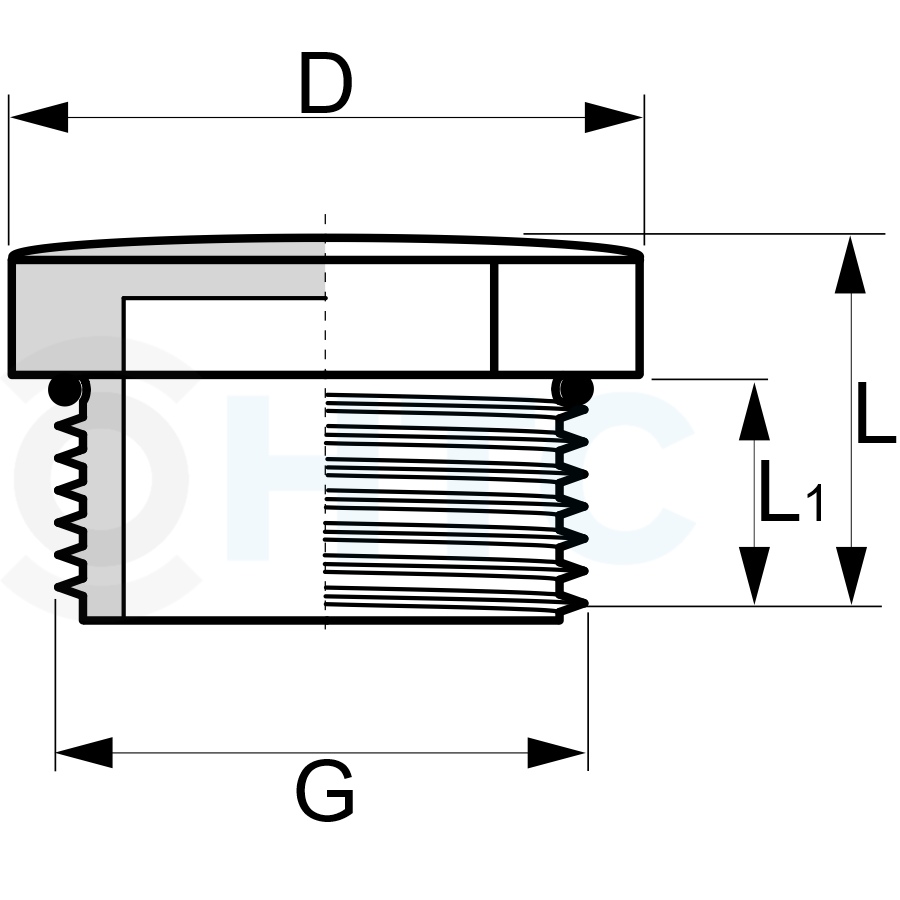

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Endkappe Gewindestopfen Aussengewinde mit O-Ring

Anschluss:
Aussengewinde
Gewinde:
BSP Rohrgewinde G inklusive O-Ring, teilversenkt
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°CMedium Wasser
Material:
PVC-U
Farbe:
Grau
O-Ring:
EPDM
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
