PVC-U pool heating bypass regulation unit
Bypass regulation unit for pool heating with three ball valves each.
Why three ball valves?
With three ball valves you can adjust your bypass optimally and we consider this to be standard equipment. With the ball valve in the main line, you can influence the direct flow to the pool. The ball valve for the pool heating regulates the inflow volume that you want to divert from the volume flow. The ball valve on the bypass return should not be underestimated, as the flow rate in the bypass can be adjusted here. This allows you to find the ideal balance between the flow rate and the dwell time of the pool water in the bypass. A long dwell time allows more heating, but less inflow back into the main stream. Shorter dwell time allows faster inflow into the main stream, but shorter heating time.Why a bypass and not a three-way rotary disk valve?
With a three-way rotary disk valve, the setting is made by means of a disk which is pushed partially or completely in front of an outlet, i.e. this outlet can be partially or completely closed. Ideal for partial or recurring volume flow detour within a pond or pool system, suboptimal or only partially satisfactory for regulating a bypass for pool heating.Connection:
see article selection
Temperature:
up to 45°C constant, briefly 60°C
O-ring:
NBR
material:
PVC-U
Color:
Gray, handle blue
Area of application:
Service: The pool heating bypass regulation units are supplied ready for use. No further gluing or similar work is required. Plug & Swim
Pool heating bypass regulation unit for hose connection
The bypass regulation unit with high-quality pool ball valves. The built-in ball valves with HDPE ball seal and adjustable safety block are easy to regulate.
Pool heating bypass regulation unit with pressure gauge
The professional bypass regulation unit with high-quality pool ball valves and pressure monitoring. The installed ball valves with HDPE ball seal and adjustable safety block are easily adjustable. After the inlet/branch ball valve, a high-quality 2" pressure gauge with glycerine filling indicates the operating pressure of the bypass system - for optimum adjustment and protection against overpressure of your valuable solar heating system. Teflon tape for readjusting the screw connection on the pressure gauge is included in the delivery.

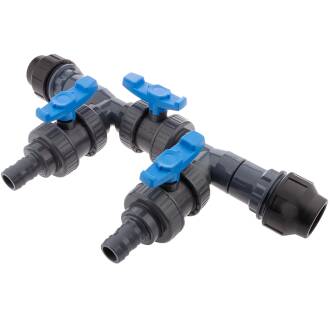

Pool heating bypass regulation unit clamp fitting 50mm to hose connection
The bypass regulation unit with compression fittings for flexible or adhesive hose 50mm and high-quality pool ball valves. The built-in ball valves with HDPE ball seal and adjustable safety block are easy to regulate.
Pool heating bypass regulation unit clamp fitting 50mm on hose connection and pressure gauge
The professional bypass regulation unit with compression fittings for flexible or adhesive hose 50mm and high-quality pool ball valves and pressure monitoring. The installed ball valves with HDPE ball seal and adjustable safety block are easy to regulate. After the inlet/branch ball valve, a high-quality 2" pressure gauge with glycerine filling indicates the operating pressure of the bypass system - for optimum adjustment and protection against overpressure of your valuable solar heating system. Teflon tape for readjusting the screw connection on the pressure gauge is included in the delivery.
READ MORE Detailed information: the ball valve
Adjustable safety block
The handle also serves as an adjustment key for the adjustable safety block. For quick adjustment of the seal carrier to the ball. The pressure of the union nut when tightening is not transferred to the ball. Flow is possible in both directions.
