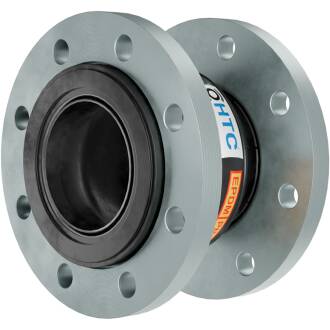

Rubber elastomer compensator steel flange galvanized

SKU: SF0990
Auswahl Steuerzone / Lieferland
from
40,13 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(16) { ["maximalmenge schlauch"]=> string(1) "0" ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(25) "PP_Rohrschelle_Rohrklemme" ["dimension_0010_variante"]=> string(0) "" ["dimension_0060_b"]=> string(0) "" ["dimension_0141_d1"]=> string(0) "" ["dimension_0144_d2"]=> string(0) "" ["dimension_0169_d3"]=> string(0) "" ["dimension_0220_dn"]=> string(0) "" ["dimension_0142_d"]=> string(0) "" ["dimension_0340_h"]=> string(0) "" ["dimension_0541_n"]=> string(0) "" ["dimension_0924_schraube"]=> string(3) "M16" ["dimension_0951_pn"]=> string(0) "" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/SZ-990_Zeichnung.jpg" ["anbieterkennzeichnung_mt"]=> string(1) "1" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D1
d
D2
D3
DN
H
n
Screw
Price
Quantity
SF0990.000.050
50mm
150
110
18
12
15
40
95
4
M16
44,27 €*
pc.:
SZ0990.000.063
63mm
165
125
18
11
16
50
105
4
M16
40,13 €*
pc.:
SF0990.000.075
75mm
185
145
18
14
16
65
115
4
M16
55,11 €*
pc.:
SF0990.000.090
90mm
200
160
18
17
18
80
130
8
M16
58,41 €*
pc.:
SZ0990.000.110
110mm
220
180
18
14
18
100
135
8
M16
69,35 €*
pc.:
SF0990.000.125
125mm
250
210
18
11
19
120
160
8
M16
97,63 €*
pc.:
SF0990.000.160
160mm
285
240
22
14
21
150
180
8
M20
147,73 €*
pc.:
SF0990.008.200
200mm 8 Loch
340
295
22
16
22
200
210
8
M20
163,29 €*
pc.:
SZ0990.012.200
200mm 12 Loch
340
295
22
16
22
200
210
12
M20
142,80 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Rubber elastomer compensator steel flange galvanized

Anti-vibration compensator with elastomer bellows made of EPDM for water, cold and hot potable water, seawater, cooling water, also with chemical additives for water treatment, weak acids and alkalis, salt solutions, technical alcohols, esters and ketones. Usable in oil-containing ambient air (e.g. engine room).
Not suitable for mineral oil products of any kind, cooling water with addition of oil-containing corrosion protection agents, oil-containing compressed air.

The variant designation makes it easy and quick to find the matching connection flange: compensator variant 90mm is suitable for any flange in accordance with DIN 90mm.

Connection:
Flange connection according to DIN
Temperature:
max. +120°C (depending on operating pressure)
Working pressure (PN):
DN40 – DN160 PN 16 bar at 20°C medium water
from DN200 PN 10 bar at 20°C medium water
up to 160mm: 10 bar (up to +90°C), 8 bar, in case of shock load minus 30%
from 200mm: 6 bar (up to +90°C), 4 bar, in case of shock load minus 30%
Material flange:
Steel, galvanically galvanized
Material bellows:
EPDM
Color:
Bellows: black | flange: silver-coloured
Rubber elastomer (EPDM) compensator

Permissible deformation of the rubber compensator

Ø
A. max
C. max
T (+ -)
63
110
99
8
75
121
103
10
90
133
118
10
110
145
117
12
140
180
152
12
160
190
162
12
200
220
180
12
250
254
215
22
315
274
235
22
