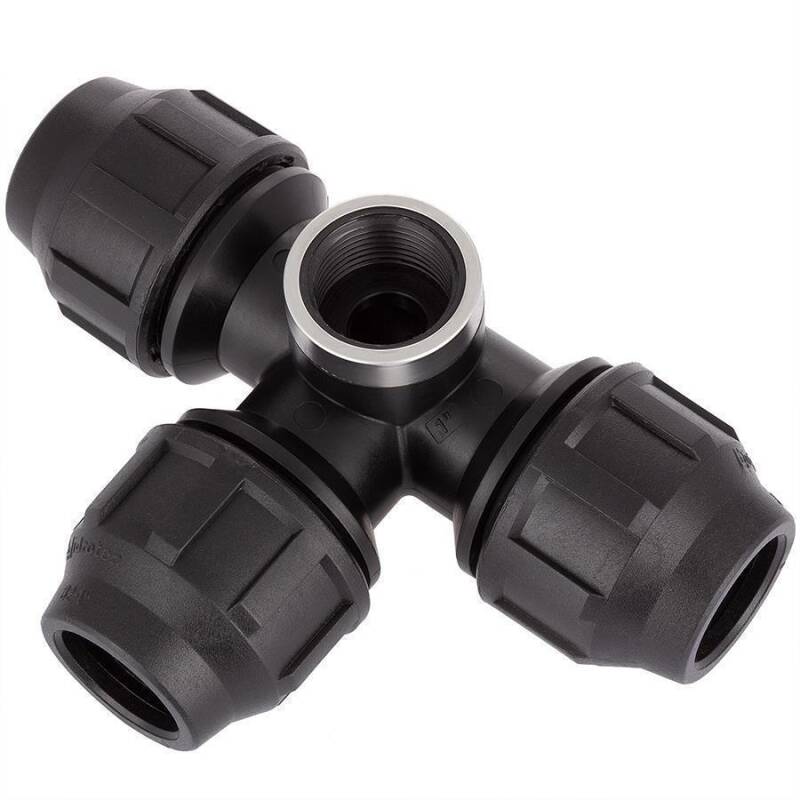

T-Stück PopUp 3fach Klemme x PopUp Innengewinde Verstärkungsring

Tee PopUp compression fitting x A2 ss reinforced female thread

4,40 €

including 19% VAT., plus shipping

Item number: PZ0507

How to measure a threaded fitting

Product picture	Item no.	Variation	A	B	C	D	E	Reinforced ring	Pipe A-Ø	Weight	Price	Quantity
	PZ0507.020.020	20mm x 1/2"	20	46	167	100	1/2" (20,96mm)	JA	20	135	4,40 €^*	pc.:
	PZ0507.020.025	20mm x 3/4"	20	46	167	100	3/4" (26,44mm)	JA	20	138	4,55 €^*	pc.:
	PZ0507.025.020	25mm x 1/2"	25	55	182	115	1/2" (20,96mm)	JA	25	224	5,44 €^*	pc.:
	PZ0507.025.025	25mm x 3/4"	25	55	182	115	3/4" (26,44mm)	JA	25	229	5,45 €^*	pc.:
	PZ0507.032.025	32mm x 3/4"	32	64	198	132	3/4" (26,44mm)	JA	32	327	8,62 €^*	pc.:
	PZ0507.032.032	32mm x 1"	32	64	198	132	1" (33,25mm)	JA	32	332	8,64 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PP Klemmringverschraubung T-Stück Abgang mittig, 3fach Klemme x Innengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich, Bewässerung sowie industriellen Anforderungen

Anschluss:

3fach Klemme x Innengewinde Verstärkungsring

Gewinde:

BSP G, , Abdichtung mit Teflonband o.ä.

Temperatur:

bis 60°C konstant, kurzzeitig 80°C

Arbeitsdruck ():

max. 16 bar bei 20°C

Material:

PP Polypropylen

O-Ring:

Farbe:
