U-PVC hose tail with female thread and nut

from
1,79 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
H
L
P1
P2
R
Price
Quantity
U-PVC hose tail with female thread and nut
AF0803.020.012
1/2" x 12/14mm
56
14
12  (12/711)
14  (14/13)
1/2" (20,96mm)
2,75 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.025.016
3/4" x 16mm
36
10
16  (16,5/15)
---
3/4" (26,44mm)
2,62 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.025.018
3/4" x 18mm
36
10
18  (18,5/17)
---
3/4" (26,44mm)
2,67 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.025.020
3/4" x 20mm
36
10
20  (20,5/19)
---
3/4" (26,44mm)
3,01 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.032.020
1" x 20mm
41
10
20  (20,5/19)
---
1" (33,25mm)
1,79 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.032.025
1" x 25mm
44
10,5
25 (25,5/24)
---
1" (33,25mm)
2,02 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.A40.025
1 1/4" x 27/25mm
81
14
25  (25/23,5)
27  (27/25,5)
1 1/4" (41,91mm)
4,27 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.040.025
1 1/4" x 25mm
49
16
25 (25,5/24,2)
---
1 1/4" (41,91mm)
2,78 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.040.032
1 1/4" x 32mm
49
16
32 (32,5/31,5)
---
1 1/4" (41,91mm)
3,00 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.503.032
1 1/2" x 30/32mm
97
16
30  (30/28,5)
32  (32/30)
1 1/2" (47,81mm)
3,50 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.050.032
1 1/2" x 32mm
50
15
32 (32,5/31,5)
---
1 1/2" (47,81mm)
3,50 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.050.038
1 1/2" x 38mm
67,5
20
38 (38,8/37,5)
---
1 1/2" (47,81mm)
3,71 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.503.832
1 1/2" x 38/32mm
82
14
32 (32,5/31,5)
38 (38,5/37,5)
1 1/2" (47,81mm)
4,37 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.050.040
1 1/2" x 40mm
59
14
40  (40,5/38,5)
---
1 1/2" (47,81mm)
4,76 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.063.038
2" x 38mm
68
14
38  (38,5/35,5)
---
2" (59,61mm)
5,78 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.063.040
2" x 42/40mm
104
18
40  (40/38)
42  (42/40)
2" (59,61mm)
8,72 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.063.050
2" x 50mm
68
14
50  (50,5/48)
---
2" (59,61mm)
4,90 €*
pc:
U-PVC hose tail with female thread and nut
AF0803.075.060
2 1/2" x 60mm
70
18
60  (61/59)
---
2 1/2" (75,18mm)
7,15 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

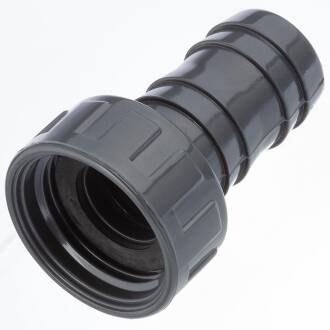

PVC-U Schlauchtülle mit Überwurfmutter

Anschluss:
Überwurfmutter (Innengewinde) x Tülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit innenliegender Flachdichtung gegen flachdichtendes Aussengewinde
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Dichtung:
EPDM
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
Tipp: PVC-U ist ein harter Kunststoff und die Tüllen haben eine ausgeprägte Rippenstruktur, was ideal für den Halt des Schlauches ist. Setzen Sie Ihre Schlauchschelle über den Schlauch direkt hinter eine Rippe. Bei spiralverstärktem Schlauch schieben Sie den Schlauch soweit auf, dass Sie einerseits die Rippenstruktur der Tülle beachten und ebenso die Schelle zwischen den Spiralen ansetzen können. Bei kleineren Durchmessers bewähren sich hier eher zwei schmale Schellen als eine breite Schelle.
Es empfiehlt sich die Tülle festzuschrauben und erst dann den Schlauch aufzuziehen.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

Schlauchtülle mit Überwurfmutter Innengewinde

Die Überwurfmutter der PVC-U Schlauchtülle ist nicht an der Tülle fixiert und frei drehbar. Die Schlauchtülle kann somit aufgedreht oder wieder abgeschraubt werden, ohne den Schlauch zu verdrehen.
Die PVC-U Schlauchtülle mit Überwurfmutter hat einen innenliegende Flachdichtung, welche den Fitting gegen entsprechendes Gegengewinde flachdichtend abdichtet. Die Überwurfmutter hat ein BSP G Zollgewinde, das gängige Gewinde der Sanitärtechnik und kann gegen jedes identische Aussengewinde flachdichtend verschraubt werden. Metallfittings mit BSP R Gewinde können u.U. das Kunststoffgewinde beeinflußen. Die Überwurfmutter ist frei beweglich, wodurch Montage und Demontage wesentlich einfacher durchgeführt werden kann und auch bereits angebrachte Schläuche auf der Tülle sich nicht verdrehen.
Die PVC-U Tülle mit Überwurfmutter inklusive Flachdichtung ist beständig gegen Chlor und Salzwasser und empfiehlt sich hierdurch als idealer Schlauchverbinder bei Poolbau und Teichbau. Der maximale Arbeitsdruck von bis zu 10 bar bei 20°C Medium Wasser macht diesen Fitting ebenso interessant für andere Anwendungen in der chemischen Industrie, Anlagenbau sowie technischen Konstruktionen.
