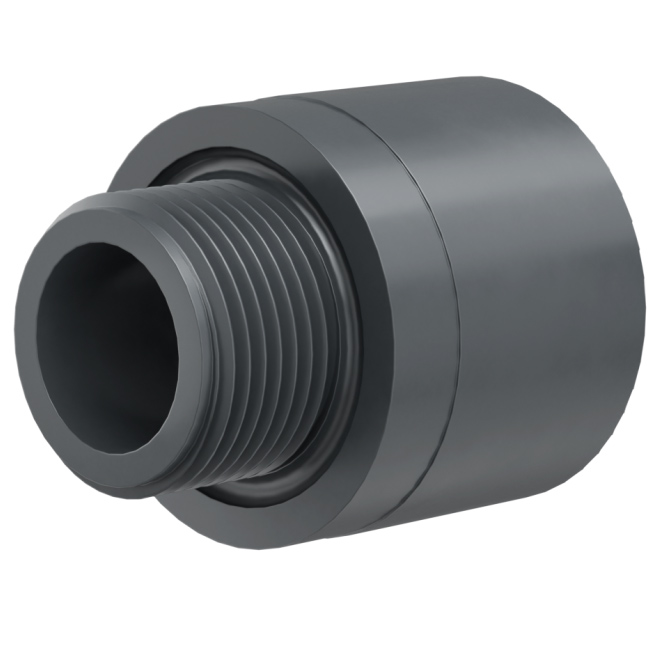

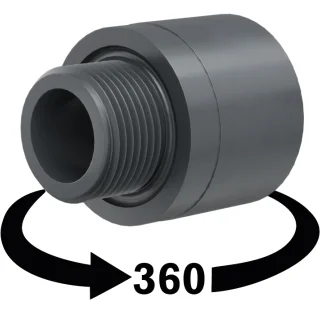

U-PVC male/female solvent adapter, male thread, without hegaxon

SKU: AF0316
Auswahl Steuerzone / Lieferland
from
1,46 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(14) { ["meta keywords"]=> string(20) "PVC_Übergangsnippel" ["tabellen_ansicht"]=> string(1) "1" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0316_Zeichnung.jpg" ["dimension_0010_variante"]=> string(0) "" ["dimension_0020_a"]=> string(8) "" ["dimension_0060_b"]=> string(8) "" ["dimension_0070_c"]=> string(8) "" ["dimension_0140_d"]=> string(0) "" ["dimension_0250_e"]=> string(0) "" ["dimension_0280_f"]=> string(0) "" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["pdf name datenblatt"]=> string(6) "AF0300" ["hat_3d_bilder"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
C
D
E
L
Price
Quantity
AF0316.020.020
20/25mm x 1/2"
25
20
1/2" (20,96mm)
16
15
44
1,46 €*
pc:
In stock: 668
delivery status: 1 - 4 working days
AF0316.020.025
20/25mm x 3/4"
25
20
3/4" (26,44mm)
16
15
44,5
1,50 €*
pc:
In stock: 977
delivery status: 1 - 4 working days
AF0316.020.032
20/25mm x 1"
25
20
1" (33,25mm)
16
18
48
1,79 €*
pc:
In stock: 425
delivery status: 1 - 4 working days
AF0316.025.020
25/32mm x 1/2"
32
25
1/2" (20,96mm)
31
15
49
1,67 €*
pc.:
In stock: 35
delivery status: 1 - 4 working days
AF0316.025.025
25/32mm x 3/4"
32
25
3/4" (26,44mm)
19
14
47
1,69 €*
pc.:
In stock: 67
delivery status: 1 - 4 working days
AF0316.025.032
25/32mm x 1"
32
25
1" (33,25mm)
19
19
51
1,84 €*
pc.:
In stock: 1660
delivery status: 1 - 4 working days
AF0316.025.040
25/32mm x 1 1/4"
32
25
1 1/4" (41,91mm)
19
19
52
2,65 €*
pc:
In stock: 371
delivery status: 1 - 4 working days
AF0316.032.025
32/40mm x 3/4"
40
32
3/4" (26,44mm)
34
17
54
1,99 €*
pc.:
In stock: 14
delivery status: 1 - 4 working days
AF0316.032.032
32/40mm x 1"
40
32
1" (33,25mm)
23
18
55,5
2,05 €*
pc.:
In stock: 1534
delivery status: 1 - 4 working days
AF0316.032.040
32/40mm x 1 1/4"
40
32
1 1/4" (41,91mm)
23
19
56
2,05 €*
pc.:
In stock: 18
delivery status: 1 - 4 working days
AF0316.032.050
32/40mm x 1 1/2"
40
32
1 1/2" (47,81mm)
23
19
55,5
2,49 €*
pc:
In stock: 4
delivery status: 1 - 4 working days
AF0316.040.032
40/50mm x 1"
50
40
1" (33,25mm)
26
19
60
2,77 €*
pc.:
In stock: 609
delivery status: 1 - 4 working days
AF0316.040.040
40/50mm x 1 1/4"
50
40
1 1/4" (41,91mm)
37,5
20
60
2,77 €*
pc.:
In stock: 294
delivery status: 1 - 4 working days
AF0316.040.050
40/50mm x 1 1/2"
50
40
1 1/2" (47,81mm)
26
20
60
2,86 €*
pc.:
In stock: 254
delivery status: 1 - 4 working days
AF0316.040.063
40/50mm x 2"
50
40
2" (59,61mm)
26
24
67
4,08 €*
AF0316.050.032
50/63mm x 1"
63
50
1" (33,25mm)
31
19
68,5
4,17 €*
pc:
In stock: 107
delivery status: 1 - 4 working days
AF0316.050.040
50/63mm x 1 1/4"
63
50
1 1/4" (41,91mm)
31
20
74
3,21 €*
AF0316.050.050
50/63mm x 1 1/2"
63
50
1 1/2" (47,81mm)
32
21
74
3,31 €*
pc.:
In stock: 722
delivery status: 1 - 4 working days
AF0316.050.063
50/63mm x 2"
63
50
2" (59,61mm)
31
20
70
3,67 €*
pc.:
In stock: 368
delivery status: 1 - 4 working days
AF0316.063.040
63/75mm x 1 1/4"
75
63
1 1/4" (41,91mm)
-
-
---
5,70 €*
pc.:
In stock: 26
delivery status: 1 - 4 working days
AF0316.063.050
63/75mm x 1 1/2"
75
63
1 1/2" (47,81mm)
38
22
80
4,57 €*
pc.:
In stock: 17
delivery status: 1 - 4 working days
AF0316.063.075
63/75mm x 2 1/2"
75
63
2 1/2" (75,18mm)
50
29
87
7,34 €*
pc.:
In stock: 7
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Transition Nipple, Female /Male Socket x Male Thread (without Hexagon)

Connection:
Female Socket/Male Socket x Male Thread (without hexagon)
Thread:
BSP thread type G, not self-sealing, seal with PTFE tape or similar.
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C, medium water
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
