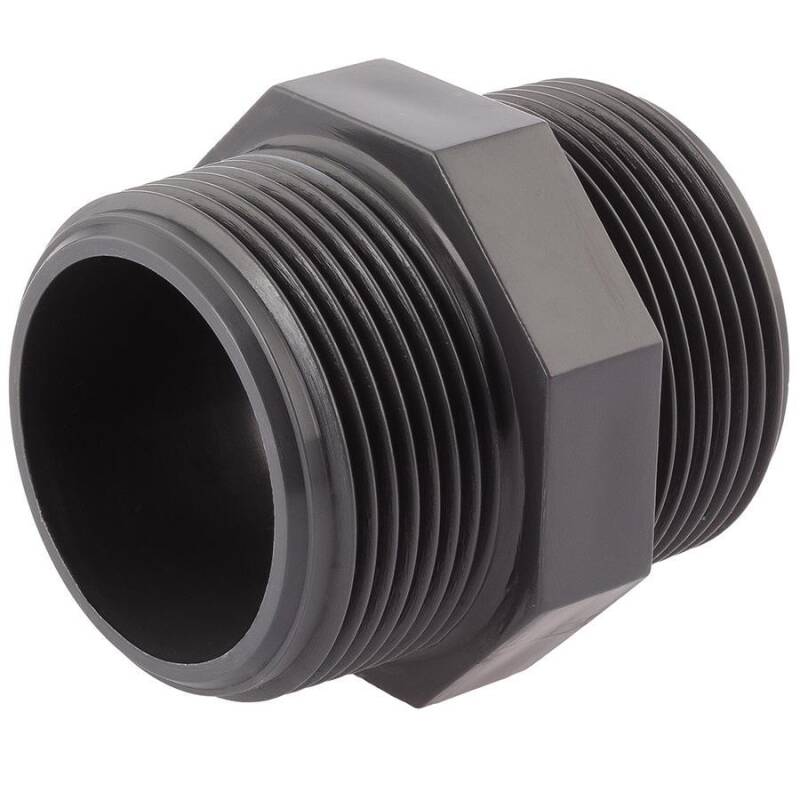

U-PVC male threaded nipple

SKU: AF0104
Auswahl Steuerzone / Lieferland
from
0,50 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(14) { ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0104_Zeichnung.jpg" ["meta keywords"]=> string(16) "PVC-Doppelnippel" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0010_variante"]=> string(22) "
10er Pack" ["dimension_0220_dn"]=> string(0) "" ["dimension_0288_g"]=> string(3) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0680_sw"]=> string(0) "" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "2px" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
DN
G
L
L1
SW
Price
Quantity
AF0104.000.012
1/4"
8
1/4" (13,16mm)
32
11,5
19
0,50 €*
pc.:
In stock: 996
delivery status: 1 - 4 working days
AF0104.000.016
3/8"
10
3/8" (16,66mm)
32
11
24
0,50 €*
pc.:
In stock: 1450
delivery status: 1 - 4 working days
AF0104.000.020
1/2"
14
1/2" (20,96mm)
40
15
24
0,50 €*
pc.:
In stock: 9995
delivery status: 1 - 4 working days
AF0104.000.025
3/4"
18
3/4" (26,44mm)
45
16
32
0,62 €*
pc.:
In stock: 2925
delivery status: 1 - 4 working days
AF0104.000.032
1"
24
1" (33,25mm)
47
19
40
0,75 €*
pc.:
In stock: 6839
delivery status: 1 - 4 working days
AF0104.000.040
1 1/4"
30
1 1/4" (41,91mm)
55
21
50
1,01 €*
pc.:
In stock: 936
delivery status: 1 - 4 working days
AF0104.000.050
1 1/2"
37,5
1 1/2" (47,81mm)
57,5
21
55
1,30 €*
pc.:
In stock: 776
delivery status: 1 - 4 working days
AF0104.000.063
2"
45,5
2" (59,61mm)
65
25
65
1,92 €*
pc.:
In stock: 932
delivery status: 1 - 4 working days
AF0104.000.075
2 1/2"
60
2 1/2" (75,18mm)
78
31
80
5,24 €*
pc.:
In stock: 80
delivery status: 1 - 4 working days
AF0104.000.090
3"
70
3" (87,88mm)
84
34
94
7,38 €*
pc.:
In stock: 66
delivery status: 1 - 4 working days
AF0104.000.110
4"
96
4" (113,03mm)
96
39
119
17,85 €*
pc.:
In stock: 2
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Threaded Double Nipple, Two Male Threads

Connection:
Two male threads (BSP Male x Male)
Thread:
BSP pipe thread G, not self-sealing – seal with PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 16 bar at 20 °C (medium: water)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
