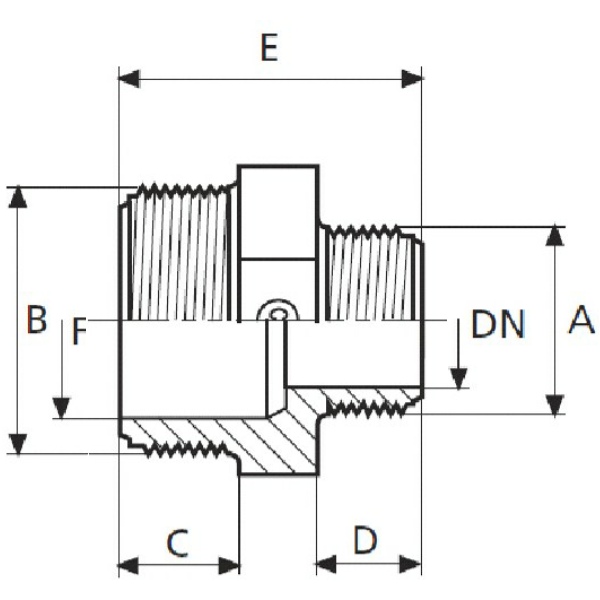

Variants

Item no.
Variation
A
B
C
D
DN
E
F
Price
Quantity
AF0205.016.012
3/8" x 1/4"
1/4" (13,16mm)
3/8" (16,66mm)
15
13
-
36
9,8
1,81 €*
pc.:
AF0205.020.016
1/2" x 3/8"
3/8" (16,66mm)
1/2" (20,96mm)
15
11
10
36
14
0,74 €*
pc.:
AF0205.025.016
3/4" x 3/8"
3/8" (16,66mm)
3/4" (26,44mm)
16
11
10
39
18
0,81 €*
pc.:
AF0205.025.020
3/4" x 1/2"
1/2" (20,96mm)
3/4" (26,44mm)
15
14,5
14
44
18
0,64 €*
pc.:
AF0205.032.016
1" x 3/8"
3/8" (16,66mm)
1" (33,25mm)
19
11
10
48
24
1,05 €*
pc.:
AF0205.032.020
1" x 1/2"
1/2" (20,96mm)
1" (33,25mm)
19
15
15
48
24
0,81 €*
pc.:
AF0205.032.025
1" x 3/4"
3/4" (26,44mm)
1" (33,25mm)
18
16
18
48,5
24
0,81 €*
pc.:
AF0205.040.020
1 1/4" x 1/2"
1/2" (20,96mm)
1 1/4" (41,91mm)
21
15
15
48
31
1,02 €*
pc.:
AF0205.040.025
1 1/4" x 3/4"
3/4" (26,44mm)
1 1/4" (41,91mm)
21
16
20
50
31
1,02 €*
pc.:
AF0205.040.032
1 1/4" x 1"
1" (33,25mm)
1 1/4" (41,91mm)
21
19
25
53
31
1,02 €*
pc.:
AF0205.050.020
1 1/2" x 1/2"
1/2" (20,96mm)
1 1/2" (47,80mm)
22
15
12
58
35
1,21 €*
pc:
AF0205.050.025
1 1/2" x 3/4"
3/4" (26,44mm)
1 1/2" (47,80mm)
21
16
20
51
37
1,26 €*
pc.:
AF0205.050.032
1 1/2" x 1"
1" (33,25mm)
1 1/2" (47,81mm)
21
18
24
54
37
1,18 €*
pc.:
AF0205.050.040
1 1/2" x 1 1/4"
1 1/4" (41,91mm)
1 1/2" (47,80mm)
21
21
32
56
37
1,18 €*
pc.:
AF0205.063.025
2" x 3/4"
3/4" (26,44mm)
2" (59,61mm)
25
16
17
55,5
43
1,76 €*
pc:
AF0205.063.032
2" x 1"
1" (33,25mm)
2" (59,61mm)
25
18
25
58
47
2,36 €*
pc.:
AF0205.063.040
2" x 1 1/4"
1 1/4" (41,91mm)
2" (59,61mm)
25
21
32
61
47
1,75 €*
pc.:
AF0205.063.050
2" x 1 1/2"
1 1/2" (47,80mm)
2" (59,61mm)
25
21
40
61
47
1,75 €*
pc.:
AF0205.075.040
2 1/2" x 1 1/4"
1 1/4" (41,91mm)
2 1/2" (75,18mm)
31
21
32
68
59
4,19 €*
pc.:
AF0205.075.050
2 1/2" x 1 1/2"
1 1/2" (47,80mm)
2 1/2" (75,18mm)
31
23
40
70
59
4,80 €*
pc.:
AF0205.075.063
2 1/2" x 2"
2" (59,61mm)
2 1/2" (75,18mm)
31
26
50
73
59
3,13 €*
pc.:
AF0205.090.050
3" x 1 1/2"
1 1/2" (47,80mm)
3" (87,88mm)
34
23
40
73
70
7,59 €*
pc.:
AF0205.090.063
3" x 2"
2" (59,61mm)
3" (87,88mm)
34
29
50
79
70
4,62 €*
pc.:
AF0205.090.075
3" x 2 1/2"
2 1/2" (75,18mm)
3" (87,88mm)
34
31
65
81
70
4,50 €*
pc.:
AF0205.110.063
4" x 2"
2" (59,61mm)
4" (113,03mm)
39
29
50
86
90
17,04 €*
pc.:
AF0205.110.075
4" x 2 1/2"
2 1/2" (75,18mm)
4" (113,03mm)
39
31
65
88
90
14,88 €*
pc.:
AF0205.110.090
4" x 3"
3" (87,88mm)
4" (113,03mm)
39
34
80
91
90
15,09 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Reduziernippel 2fach Aussengewinde

Anschluss:
Aussengewinde x Aussengewinde reduziert
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

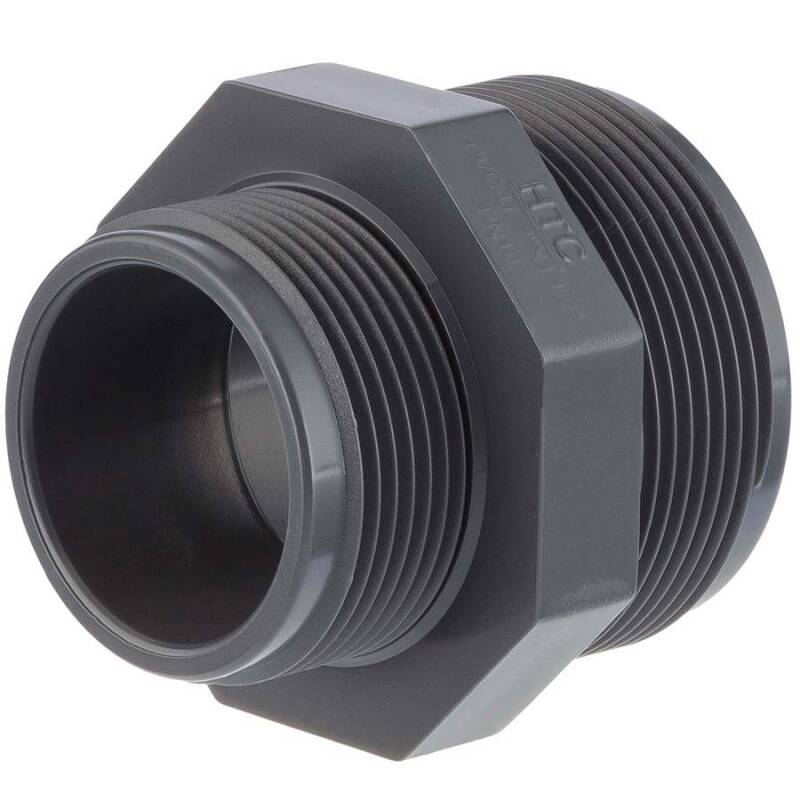

PVC-U Reduziernippel 2fach Aussengewinde

Der Reduziernippel aus Hart-PVC (PVC-U) besitzt auf beiden Seiten ein Aussengewinde mit unterschiedlichen Durchmessern. Dies unterscheidet den Reduziernippel zu einem Doppelnippel, welcher auf beiden Seiten ein identisches Aussengewinde hat

Der gängige Gewindetyp in der Sanitärbranche ist das BSP G Gewinde (Whitworth-Rohrgewinde). Somit sind theoretisch alle PVC-U Gewindefittings mit Gewindefittings aus anderen Materialien wie Messing, Edelstahl oder Polypropylen (PP) kompatibel.
Gewinde dieses Typs sind nicht selbstdichtend und benötigen ein geeignetes Gewindedichtmaterial wie z.B. Teflonband.

das Kreuz mit dem Zoll - oder warum 1" eben keine 25,4mm sind

Teflonband, Dichtfaden, Hanf und Dichtpaste: Gewindedichtmaterial

Verwenden Sie kein quellendes Dichtmaterial: abdichten und verbinden von Kunsstoffgewinden

Sie suchen nach Reduziernippel aus PVC? Sie möchten PVC Reduziernippel online kaufen?
Das ist kein Problem in unserem Onlineshop PVC-Welt.de.
Gängige Reduziernippel haben die Maße:
Reduziernippel 1 auf 3/4 Zoll
Reduziernippel 1 1/4 auf 1 Zoll
Reduziernippel 1 1/2 auf 1 Zoll
Hochwertige Reduziernippel aus PVC-U mit Sechskant und einem Rohrgewinde BSP (R) auf beiden Seiten, dem klassischem Gewinde der Sanitättechnik. Mit unserer Industriequalität sind Sie immer auf der sicheren Seite.
Qualität von Profis für Profis!
