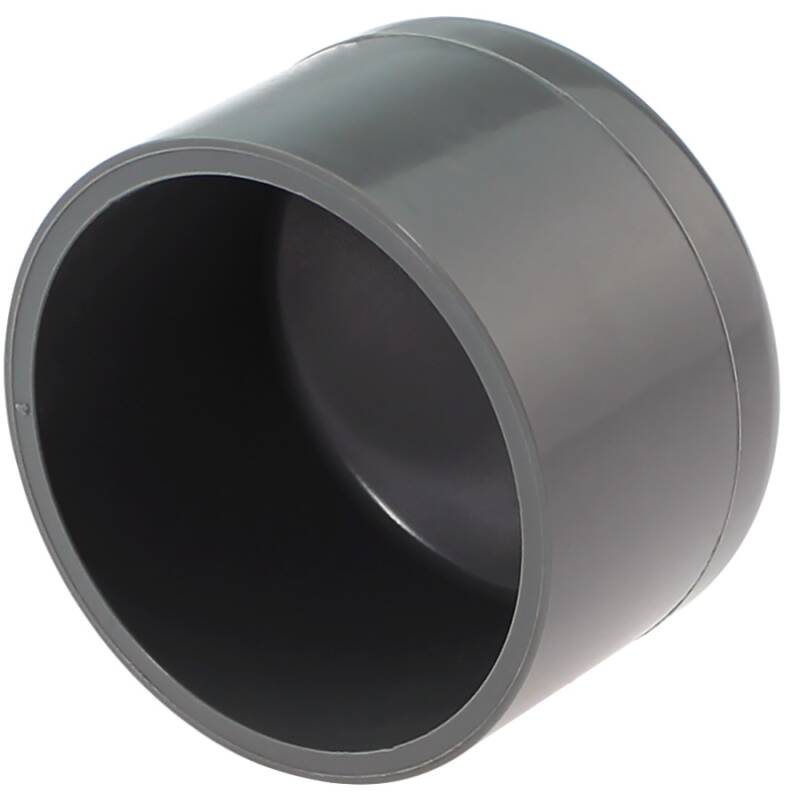

U-PVC solvent end cap - ECO

SKU: AL0815
Auswahl Steuerzone / Lieferland
from
0,17 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
C
D
Weight
Price
Quantity
U-PVC solvent end cap - ECO 20mm
AL0815.000.020
20mm
24
20
21
16
6
0,17 €*
U-PVC solvent end cap - ECO 25mm
AL0815.000.025
25mm
30
25
24
20
8
0,19 €*
pc.:
U-PVC solvent end cap - ECO 32mm
AL0815.000.032
32mm
37
32
30
23
14
0,30 €*
pc.:
U-PVC solvent end cap - ECO 40mm
AL0815.000.040
40mm
46
40
37
26
20
0,46 €*
pc.:
U-PVC solvent end cap - ECO 50mm
AL0815.000.050
50mm
56,5
50
42
31
39
0,56 €*
pc.:
U-PVC solvent end cap - ECO 63mm
AL0815.000.063
63mm
72
63
38
52
80
0,88 €*
pc.:
U-PVC solvent end cap - ECO 75mm
AL0815.000.075
75mm
83
75
58
45
98
1,45 €*
pc.:
U-PVC solvent end cap - ECO 90mm
AL0815.000.090
90mm
100
90
68
52
164
2,18 €*
pc.:
U-PVC solvent end cap - ECO 110mm
AL0815.000.110
110mm
121,5
110
80
61
256
4,13 €*
pc.:
U-PVC solvent end cap - ECO 200mm
AL0815.000.200
200mm
215
200
120
117
1234
20,67 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Größen, welche nicht angezeigt werden sind nicht mehr vorrätig

PVC-U Ebdkappe Klebekappe mit Klebemuffe ECO

Anschluss:
Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
