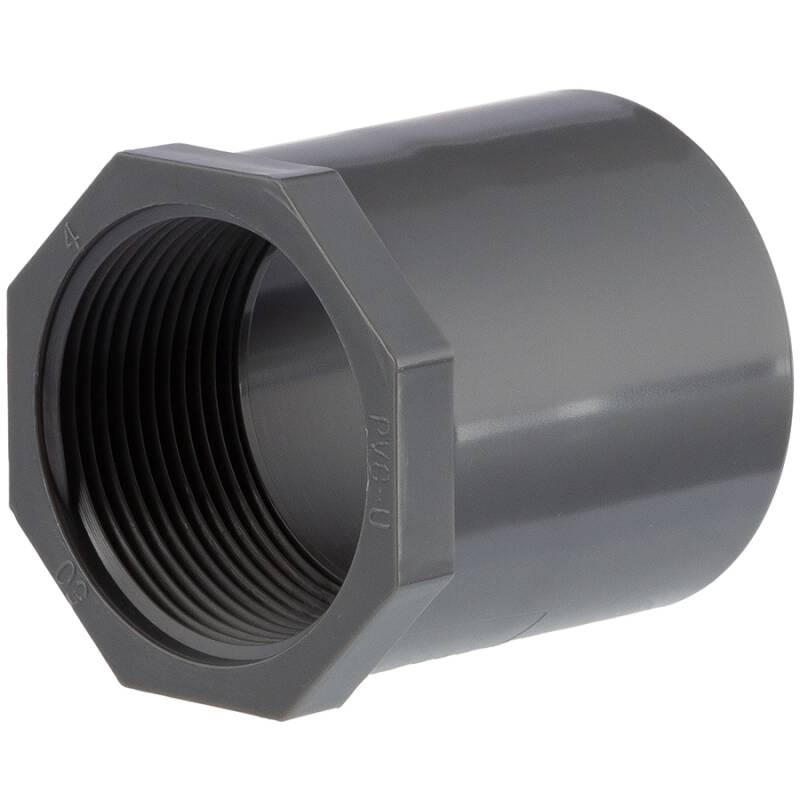

U-PVC solvent socket x female thread - ECO

SKU: EC0102
Auswahl Steuerzone / Lieferland
from
0,32 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
G
L
L1
L2
S
Price
Quantity
EC0102.020.020
20mm x 1/2"
20
1/2" (20,95mm)
35
17
18
31
0,32 €*
pc:
EC0102.025.025
25mm x 3/4"
25
3/4" (26,44mm)
39
19
20
32
0,48 €*
pc:
EC0102.032.032
32mm x 1"
32
1" (33,25mm)
45
21
24
39
0,56 €*
pc:
EC0102.040.040
40mm x 1 1/4"
40
1 1/4" (41,91mm)
51
25
26
48
0,80 €*
pc:
EC0102.050.050
50mm x 1 1/2"
50
1 1/2" (47,80mm)
56
30
26
57
1,06 €*
pc:
EC0102.063.063
63mm x 2"
63
2" (59,61mm)
64
35
29
71
1,51 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U transition sleeve ECO, adhesive sleeve x internal thread

ECO-LINE, the low-cost version for pools, ponds, irrigation and low-pressure systems

Connection:
Glue socket x female thread
Working pressure (PN):
max. PN 6 bar at 20°C medium water
Thread:
BSP pipe thread G, not self-sealing, sealing with Teflon tape or similar.
Temperature:
constant up to 45°C, briefly 60°C
Material: PVC-U
PVC-U
color:
Light gray
Area of application:
Pikto
DOWNLOADRoHS confirmation HTC
DOWNLOAD Bonding PVC-U pipes and fittings
DOWNLOAD Thread identification - or why 1" is not 25.4mm
DOWNLOAD Sealing and joining plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection molded fittings
