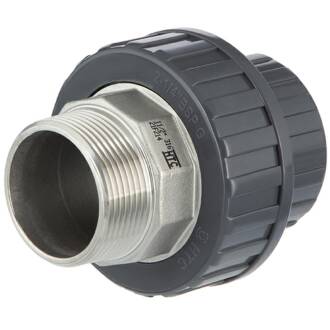

U-PVC solvent union x A4 stainless steel male thread

from
5,01 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
A
B
C
D
E
G
G1
S
Price
Quantity
AF0612.020.020
20mm x 1/2"
59,5
13
16
20
41
1/2" (20,96mm)
1" (33,25mm)
14,5
5,01 €*
pc.:
AF0612.025.025
25mm x 3/4"
67,5
13
19
25
52
3/4" (26,44mm)
1 1/4" (41,91mm)
30
8,31 €*
pc.:
AF0612.032.032
32mm x 1"
73
16
21
32
60
1" (33,25mm)
1 1/2" (47,81mm)
38
12,50 €*
pc.:
AF0612.040.040
40mm x 1 1/4"
86
19
26
40
74
1 1/4" (41,91mm)
2" (59,61mm)
47
18,81 €*
pc.:
AF0612.050.050
50mm x 1 1/2"
95
18
31
50
80
1 1/2" (47,81mm)
2 1/4" (65,27mm)
53
22,99 €*
pc.:
AF0612.063.063
63mm x 2"
108
22
38
63
98
2" (59,61mm)
2 3/4" (81,53mm)
66
37,37 €*
pc.:
AF0612.075.075
75mm x 2 1/2"
121
27
51
75
118
2 1/2" (75,18mm)
3 1/2"
80
44,08 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Übergangs-/Verschraubung auf V4A Edelstahl Aussengewinde

Die Verbindung zwischen den Welten - Professionelle, passgenaue, trennbare Anbindung von PVC-U auf Edelstahl V4A.

Anschluss:
Klebemuffe x Edelstahl V4A Aussengewinde incl. innenliegend O-Ring
O-Ring:
NBR
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U, Einlegeteil Edelstahl V4A
Farbe:
Grau, Einlegeteil Edelstahl
Einsatzbereich:


Ersatzteile Verschraubung AF0612

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
