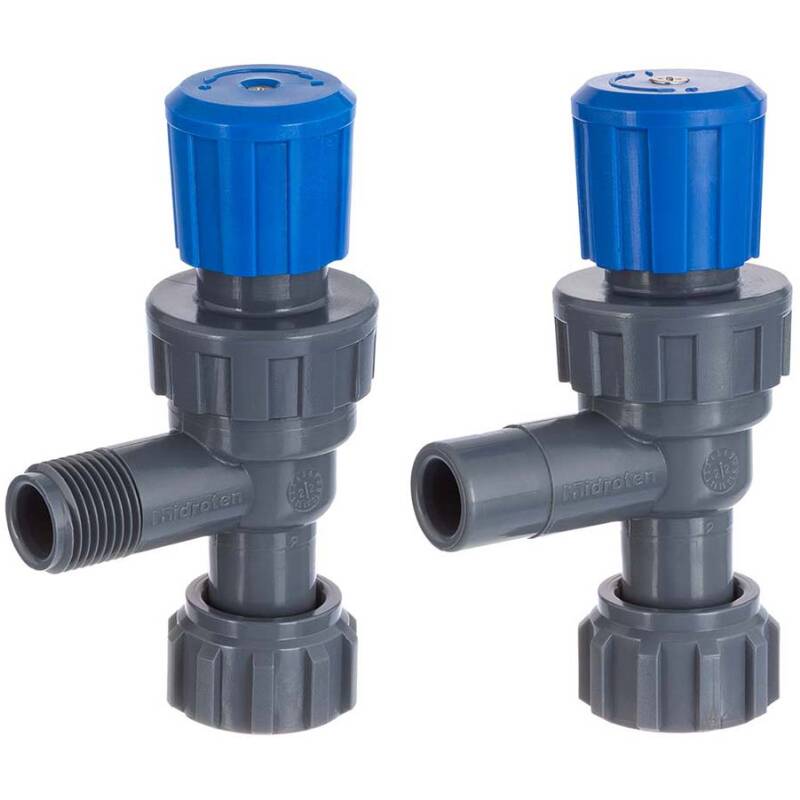

U-PVC angle valve

from
36,93 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
D
D1
DN
H
L
Price
Quantity

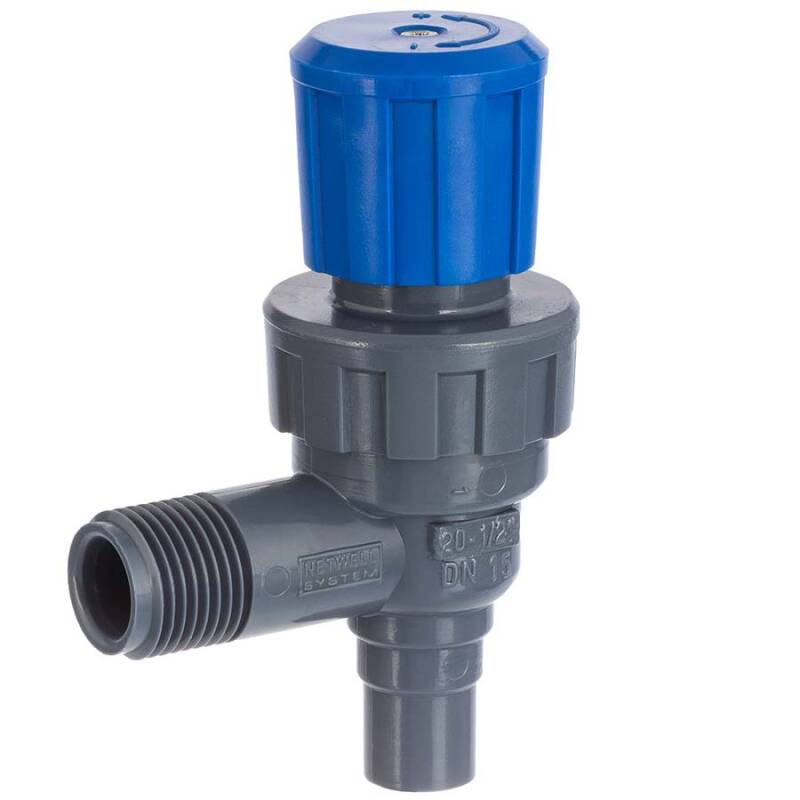

U-PVC angle valve 1/2"
AK0100.S16.G20
16mm Stutzen x 1/2" Aussengewinde
44
16
1/2" (20,96mm)
12
103/113
74
36,93 €*
pc:

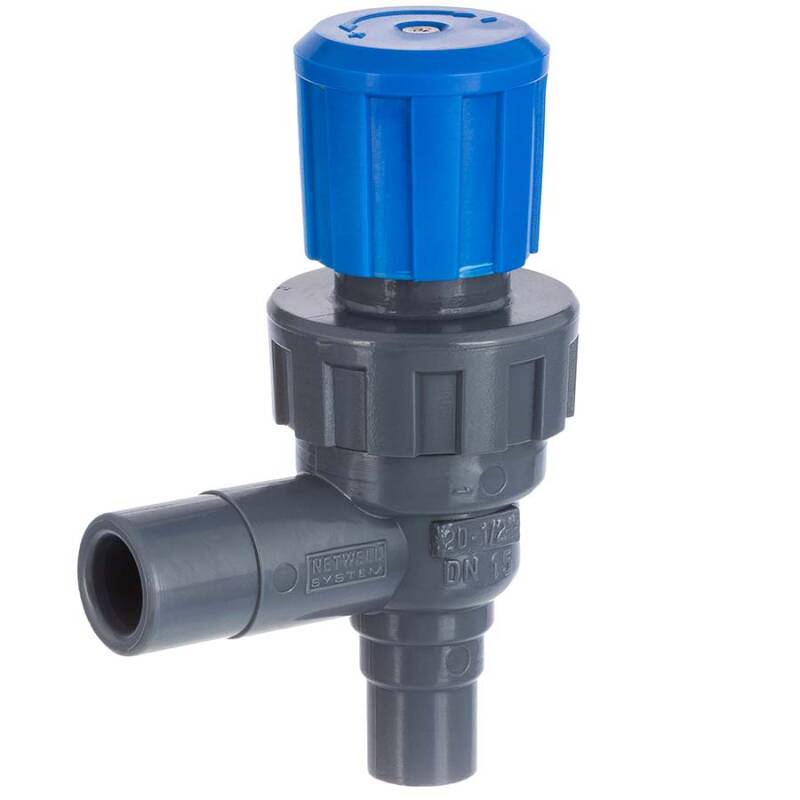

U-PVC angle valve 16 x 20mm male socket
AK0100.S16.S20
16 x 20mm Stutzen
44
16
20
12
102,5/111,5
74
38,65 €*
pc:

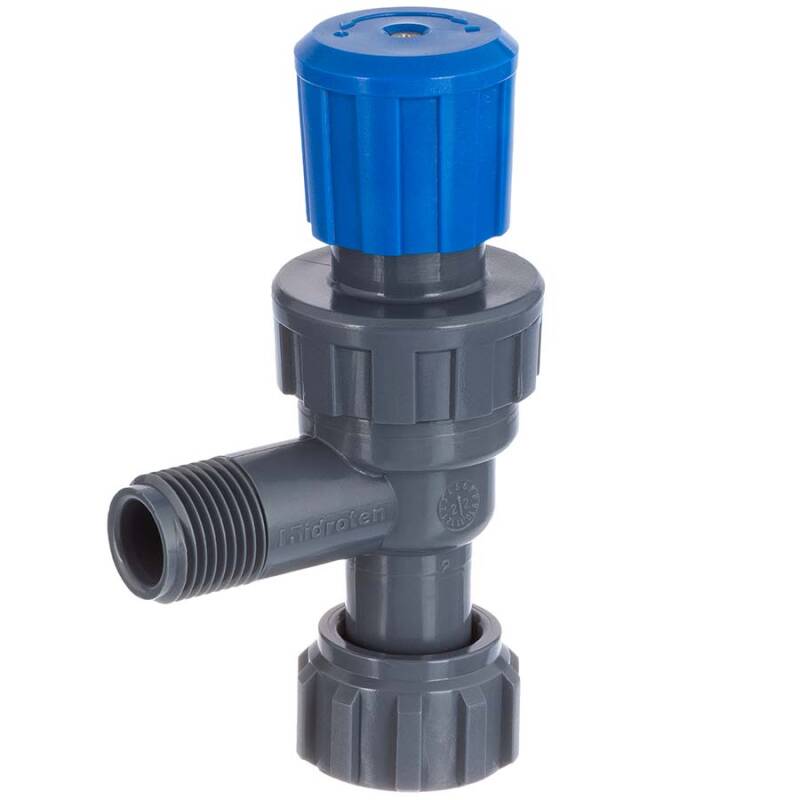

U-PVC angle valve 1/2" x 3/4"
AK0100.I25.A20
3/4" Überwurf x 1/2" Aussengewinde
44
3/4" (26,44mm)
1/2" (20,96mm)
12
105/114
74
38,85 €*
pc:

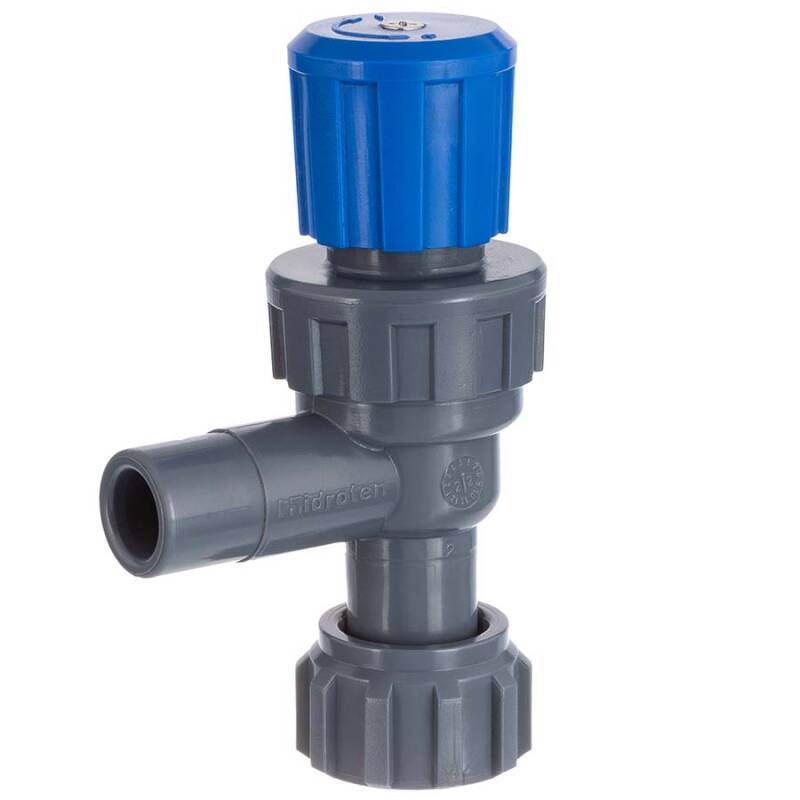

U-PVC angle valve 20mm x 3/4"
AK0100.I25.S20
3/4" Überwurf x 20mm Stutzen
44
3/4" (26,44mm)
20
12
105/114
74
41,21 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Eckventil

Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Zertifikat:
WRAS Zertifikat (Trinkwasser)
Farbe:
Grau, Sterngriff Blau
Einsatzbereich:
Pikto
Zertifikat:
WRAS Qualitätslogo
WRAS geprüfte Industriequalität für den direkten Einsatz mit Trinkwasser sowie nährenden Flüssigkeiten.

orange dot Technische Details

Eckventil 16 x 20mm Klebestutzen

PVC-U Eckventil 16 x 20mm Stutzen

PVC-U Eckventil mit Anschlussmöglichkeit 16 x 20mm Klebestutzen.
Eckventil 16mm Klebestutzen x 1/2

PVC-U Eckventil 16mm Stutzen x 1/2" Aussengewinde

PVC-U Eckventil mit Anschlussmöglichkeit 16mm Klebestutzen x 1/2" Aussengewinde.
Eckventil 3/4

PVC-U Eckventil 3/4" Überwurfmutter x 1/2" Aussengewinde

PVC-U Eckventil mit Anschlussmöglichkeit 3/4" Überwurfmutter x 1/2" Aussengewinde incl. Flachdichtung EPDM.
Eckventil 3/4

PVC-U Eckventil 3/4" Überwurfmutter x 20mm Stutzen

PVC-U Eckventil mit Anschlussmöglichkeit 3/4" Überwurfmutter x 20mm Stutzen incl. Flachdichtung EPDM.

orange dot Download

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
