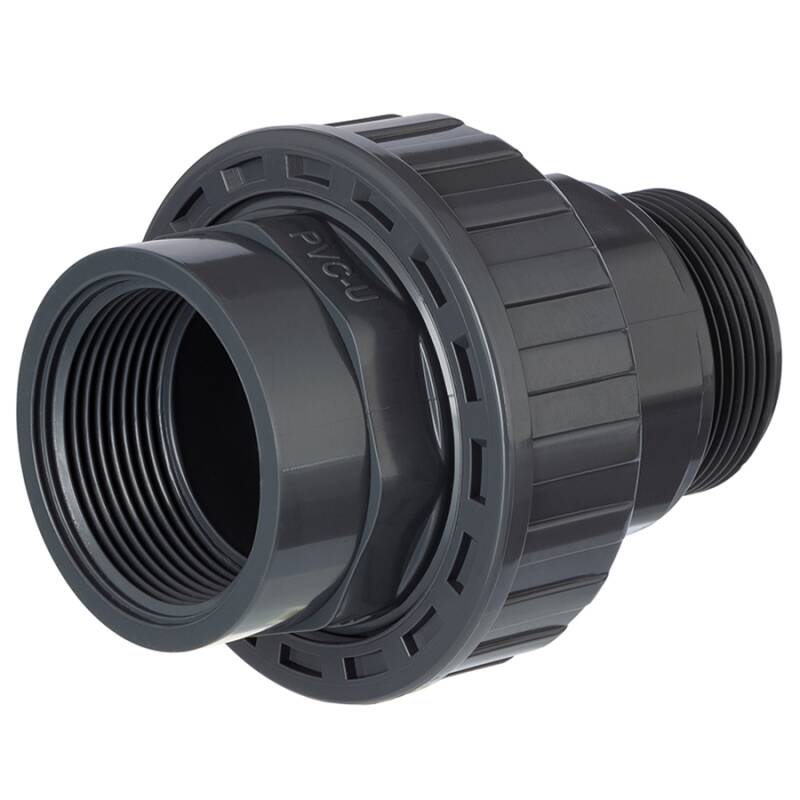

U-PVC female/male threaded union

SKU: AF0605
Auswahl Steuerzone / Lieferland
from
2,08 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

Item no.
Variation
D
G
G1
L
L1
L2
Weight
Price
Quantity
AF0605.020.020
1/2"
40
1/2" (20,96mm)
1" (33,25mm)
63
14
15
43
2,08 €*
pc.:
AF0605.025.025
3/4"
51
3/4" (26,44mm)
1 1/4" (41,91mm)
73
17
17
69
2,55 €*
pc.:
AF0605.032.032
1"
57
1" (33,25mm)
1 1/2" (47,80mm)
75
22
19
82
3,01 €*
pc.:
AF0605.040.040
1 1/4"
72
1 1/4" (41,91mm)
2" (59,61mm)
93
26
20
157
3,45 €*
pc.:
AF0605.050.050
1 1/2"
81
1 1/2" (47,80mm)
2 1/4"
106
31
31
225
4,21 €*
pc.:
AF0605.063.063
2"
93
2" (59,61mm)
2 3/4"
117
33
28
344
6,82 €*
pc.:
AF0605.075.075
2 1/2"
118
2 1/2" (75,18mm)
3 1/2"
151
44
44
631
19,08 €*
pc.:
AF0605.090.090
3"
136
3" (87,88mm)
4" (113,03mm)
158
51
44
787
25,18 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Verschraubung Innengewinde x Aussengewinde

Anschluss:
Innengewinde x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Drucktest:
Drucktest nach ISO 9393-2:2005(E) Testdruck 1,5 x PN 16
Gewinde Verschraubung:
BSP G-Gewinde, nutzbar mit identischem BSP (Zoll) - Gegengewinde
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
DOWNLOAD RoHS Konformitätserklärung - CH Aquaram
DOWNLOAD Unbedenklichkeit Kontakt mit Trinkwasser und Nahrung - CH Aquaram PVC-U Fittings
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
