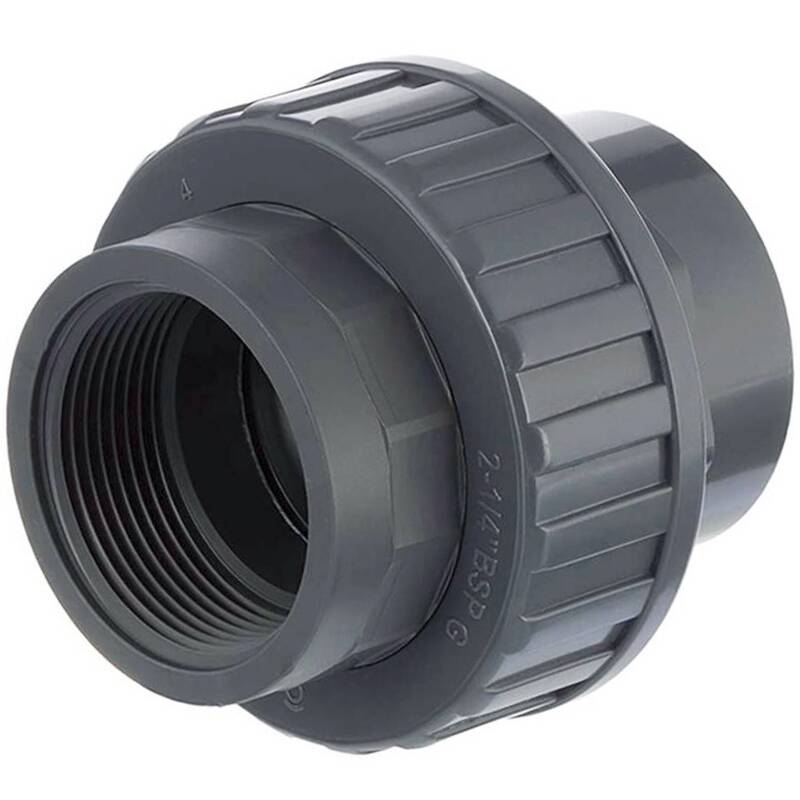

U-PVC female threaded union

from
0,94 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
A
B
G
L
L1
Price
Quantity
AF0603.000.020
1/2"
45
44,5
BSPT 1/2" (20,96mm)
19
17
0,94 €*
pc.:
AF0603.000.025
3/4"
47,5
51,5
BSPT 3/4" (26,44mm)
23
18
1,18 €*
pc.:
AF0603.000.032
1"
60
58
BSPT 1" (33,25mm)
29
22
1,77 €*
pc.:
AF0603.000.040
1 1/4"
65
73
BSPT 1 1/4" (41,91mm)
29
26
2,38 €*
pc.:
AF0603.000.050
1 1/2"
69,5
83,5
BSPT 1 1/2" (47,81mm)
34
27
3,00 €*
pc.:
AF0603.000.063
2"
82,5
97
BSPT 2" (59,61mm)
36
35
4,71 €*
AF0603.000.075
2 1/2"
110
120
BSPG 2 1/2" (75,18mm)
35
34
21,52 €*
pc.:
AF0603.090.090
3"
112
141
BSPT 3" (87,88mm)
56
42
23,12 €*
pc.:
AF0603.000.110
4"
146,5
163
BSPG 4" (113,03mm)
42
42
24,85 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Verschraubung 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
O-Ring:
EPDM
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Dichtung O-Ring:
NBR, Farbe Schwarz
Einsatzbereich:


Wichtig: Das Gewinde der Überwurfmutter ist nicht mit anderen Gewindefittings kombinierbar und ausschließlich für diese Verschraubung vorgesehen. Dieses Gewinde ist nicht genormt und weicht von Hersteller zu Hersteller ab.


Wichtig: BSPT: das Gewinde geht bis zum Ende des Einsatzes, läuft aber leicht konisch zu, so dass das Aussengewinde nicht bis zum Gegenstück eingedreht werden und Schäden verursachen kann. BSPG: das Gewinde ist ein Parallelgewinde und kürzer als der Einsatz (die Maßangabe L und L1 zeigen die tasächliche Gewindelänge an).


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
