U-PVC solvent union x graduated hose tail

from
3,00 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
D
D1
D2
DN
E
L
L1
L2
Price
Quantity

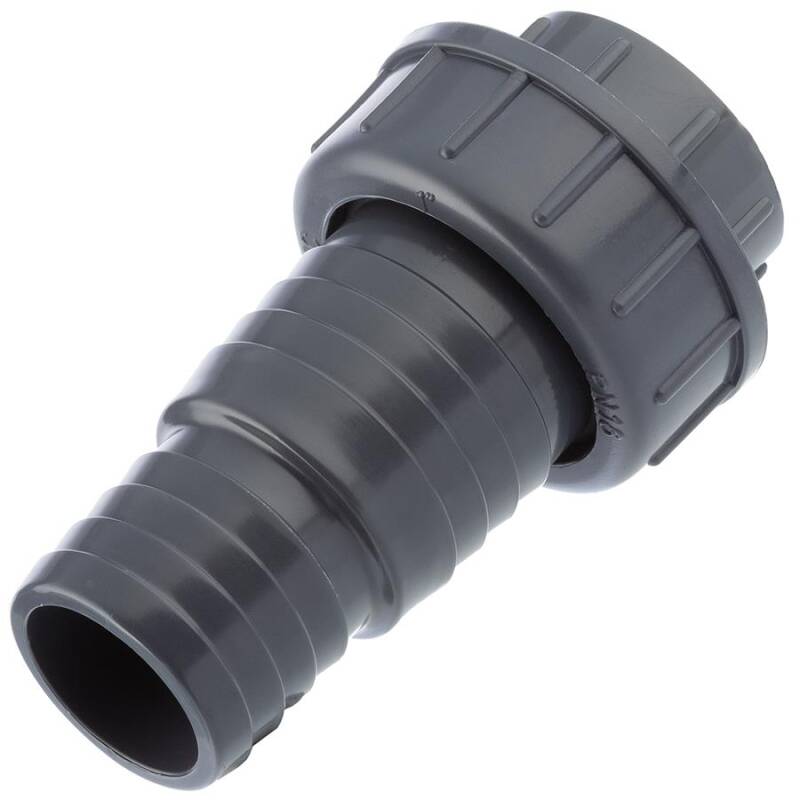

U-PVC solvent union x graduated hose tail 32 x 38/32mm
AF0619.032.032
32 x 40/32mm
32
34,5/33
40/38,5
26,5
60
103
30
35
3,00 €*
pc.:

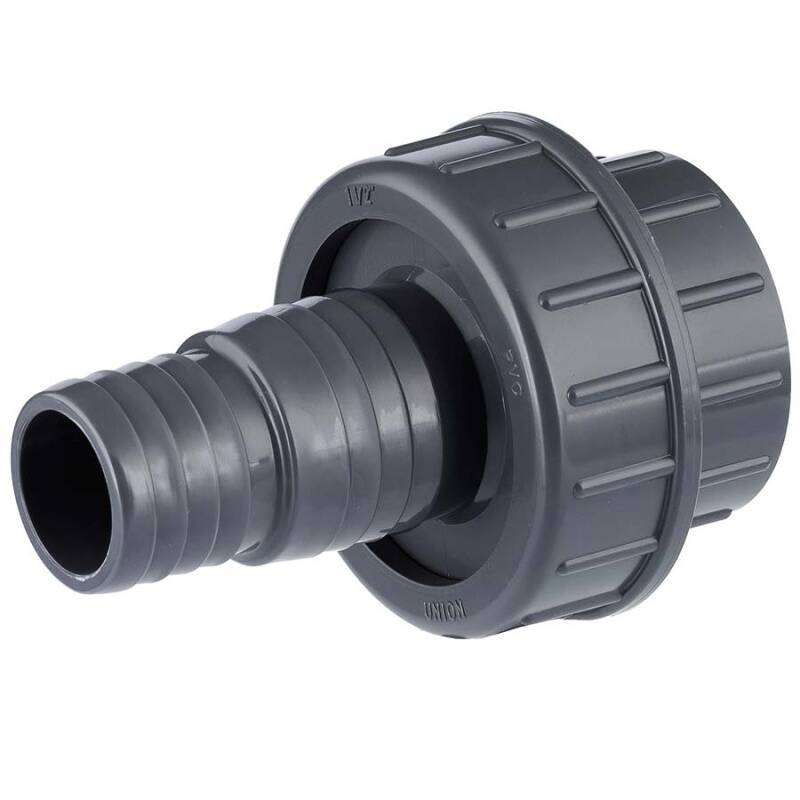

U-PVC solvent union x graduated hose tail 50 x 38/32mm
AF0619.050.032
50 x 40/32mm
50
34,5/33
40/38,5
26,5
84
120
30
35
5,28 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Verschraubung Klebemuffe x Stufenschlauchtülle

Anschluss:
Klebemuffe x Stufenschlauchtülle
O-Ring:
EPDM
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. PN 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Dichtung O-Ring:
NBR, Farbe Schwarz
Einsatzbereich:


Wichtig: Das Gewinde der Überwurfmutter - außer es liegt ein Maß unter G vor - ist nicht mit anderen Gewindefittings kombinierbar und ausschließlich für diese Verschraubung vorgesehen. Dieses Gewinde ist nicht genormt und weicht von Hersteller zu Hersteller ab.


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
