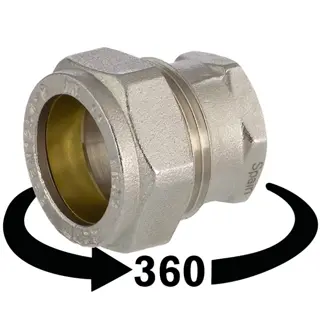

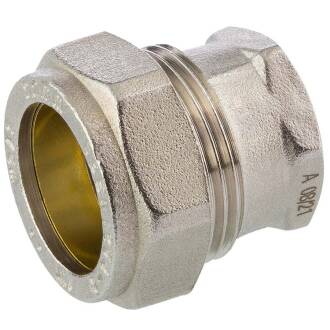

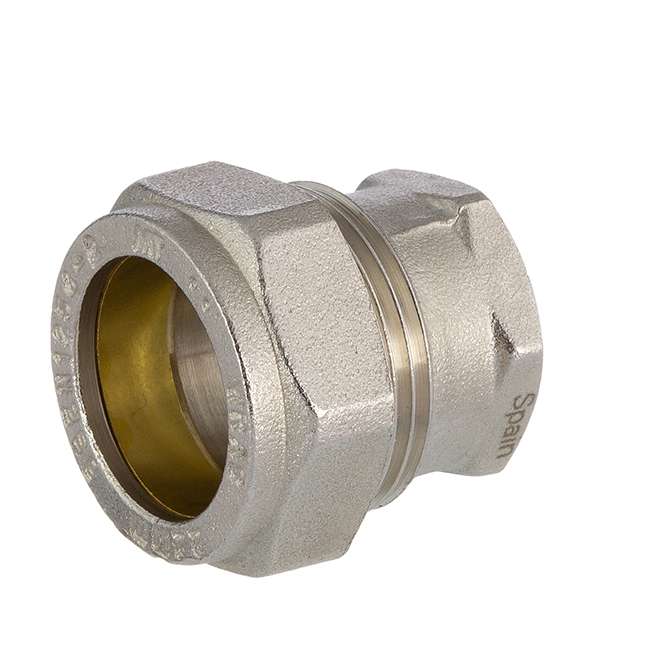

Brass adapter compression fitting x female thread

SKU: MK0102
Auswahl Steuerzone / Lieferland
from
1,48 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation

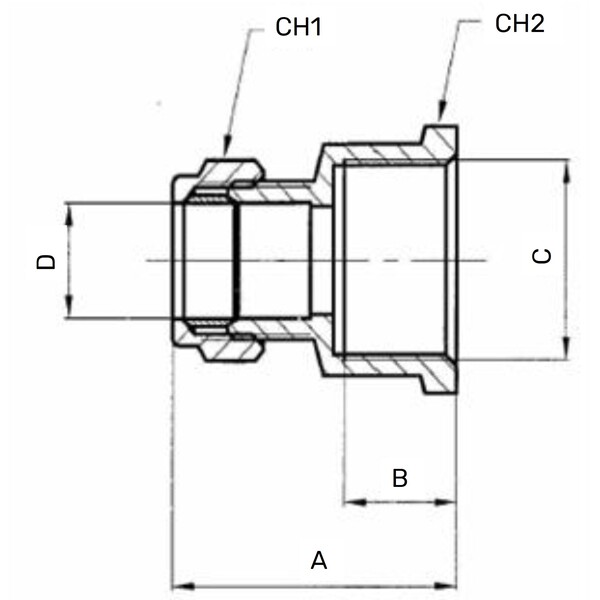

A
B
C
CH1
CH2
D
Price
Quantity
MK0102.015.020
15mm x 1/2"
32,5
14
1/2" (20,96mm)
23,5
25
15
1,48 €*
pc.:
MK0102.015.025
15mm x 3/4"
34,5
15
3/4" (26,44mm)
23,5
31
15
2,17 €*
pc.:
MK0102.015.032
15mm x 1"
33
13
1" (33,25mm)
23
37
15
2,30 €*
pc.:
MK0102.018.020
18mm x 1/2"
35,5
14
1/2" (20,96mm)
28
25
18
1,90 €*
pc.:
MK0102.018.025
18mm x 3/4"
35
15
3/4" (26,44mm)
28
31
18
2,48 €*
pc.:
MK0102.022.020
22mm x 1/2"
35
14
1/2" (20,96mm)
31,5
30
22
2,83 €*
pc.:
MK0102.022.025
22mm x 3/4"
36,5
15
3/4" (26,44mm)
31,5
31
22
2,68 €*
pc.:
MK0102.022.032
22mm x 1"
39
18
1" (33,25mm)
31,5
38
22
4,12 €*
pc.:
MK0102.028.025
28mm x 3/4"
42,5
18
3/4" (26,44mm)
38
38
28
5,14 €*
pc.:
MK0102.028.032
28mm x 1"
42
18
1" (33,25mm)
38
38
28
5,14 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass transition sleeve clamp x female thread

Connection:
Clamp x female thread
Material:
Nickel-plated brass body UNE EN 12164
Union nut made of nickel-plated brass UNE EN 12165
Brass clamping ring (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to +120°C
Working pressure (PN):
max. PN 16 bar at 30°C (PN 6 bar at 110°C, PN 5 bar at 120°C) Medium: water
Application
For semi-hard or hard copper pipe and stainless steel pipe
Anzugsdrehmoment

The cutting ring

Important technical information:
The cutting ring may only be used once. If the fitting is dismantled and is to be used again, the cutting ring must be replaced.

DOWNLOADWRAS certification
DOWNLOAD the thread identification - or why 1" is not 25.4mm

Brass transition fitting clamp x female thread for copper pipe and stainless steel pipe

The brass compression fitting system is suitable for all requirements in the private sector, trade or industrial installations in conjunction with semi-hard or hard copper pipes or stainless steel pipes. It is not suitable for gas applications.

All threaded connections of the brass compression fittings for copper pipe or stainless steel pipe are manufactured in accordance with the current ISO 228-1 standard, are parallel and correspond to the BSP Whitworth G-type thread (also gas thread).
In our table view, the dimension is given in inches and also converted to mm (in brackets).
The union nuts of the fittings are not standardized and can only be used to close the clamp.

So that there is clarity...: the cross with the inch - or why 1" is not 25.4mm
Just like plastic fittings, metal threads can be sealed with PTFE (Teflon) thread sealing tape or thread sealing thread, but unlike plastic fittings, they can also be sealed with swelling sealing material such as hemp or flax in combination with thread sealing paste.

Teflon tape, sealing thread, hemp and sealing paste: Thread sealing material

Brass transition sockets with internal thread can be used with threaded fittings made of brass or stainless steel V4A can be added.

As the internal thread is manufactured in accordance with the ISO 228-1 BSP G pipe thread standard, a transition to PVC-U fittings and pipe or also to PP threaded fittings can also be produced!
