PVC-U ist ein harter Kunststoff und hat eine hohe Wertigkeit, so dass die Schlauchtüllen je nach Ausführung eine hohe Druckbelastung standhalten. PVC-U Schlauchtüllen mit Klebesutzen bis max. PN 16 bar. PVC-U Schlauchtüllen mit Gewindeanbindung bis max. PN 10 bar.

PVC-U hoses with glue male pipe

The glue male pipe (outer diameter) is glued into a glue socket. If you want to connect a PVC-U pipe with a hose line, you need an adhesive sleeve (connection sleeve).

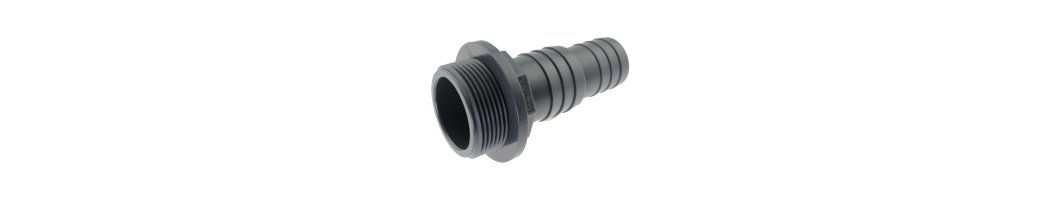

PVC-U hose with external thread

The PVC-U hose with external thread can be connected to any identical mating thread. Sealing is carried out with Teflon tape or a sealant. The PVC-U hose nozzles with external thread are not suitable for direct installation on a water barrel, rain barrel, tank or IBC container, as the support collar is too narrow or not available.

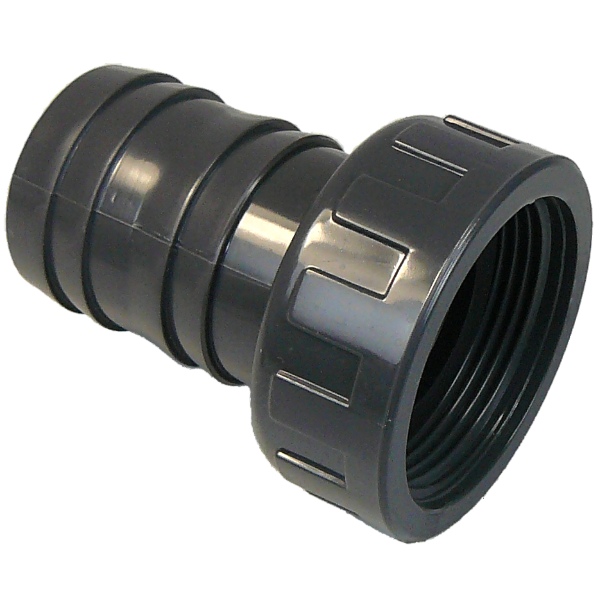

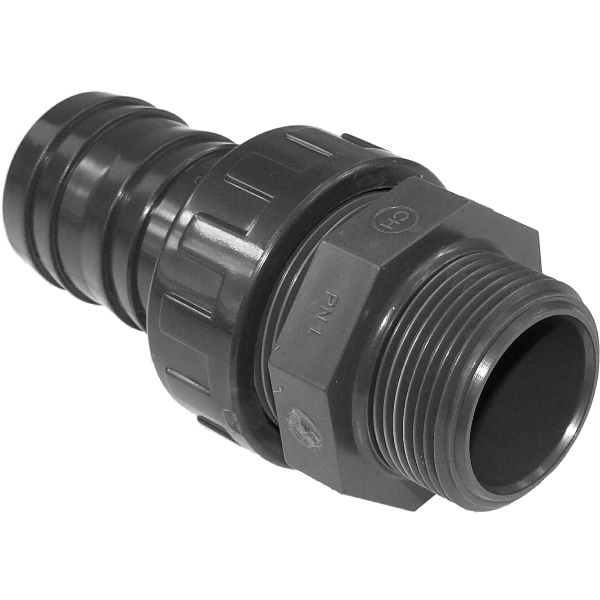

PVC-U hose nipple with union nut

The PVC-U hose nozzle with a union nut (internal thread) can be detached from the mating thread at any time without turning the hose or moving the pipe section. Sealing is achieved with the enclosed flat seal against a flat-sealing mating thread. No gluing is necessary and no additional sealing is required..

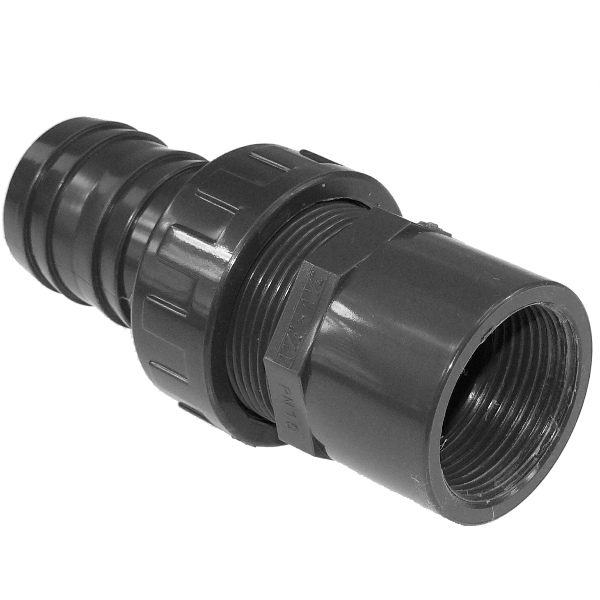

PVC-U hose nipple female thread

This two-part PVC-U fitting enables a permanent connection to an existing BSP G external thread, whereby the PVC-U hose with union nut can be separated from the external thread of the union. The seal between the PVC-U hose with union nut and the fittings is created using the enclosed flat gasket.

Polypropylene (PP) is a softer, lighter plastic. This makes the PP polypropylene hose nozzle less durable up to max. PN 6 bar. Polypropylene plastic cannot be bonded, but is UV-stable and the temperature range of max. +60°C is approx. 15 degrees higher than comparable PVC-U hose nozzles with reduced values.

The range of variants is wider than with PVC-U hose nozzles. This is due to the possibility of injecting the raw material with fibre reinforcement. This results in a wide range of possible applications.

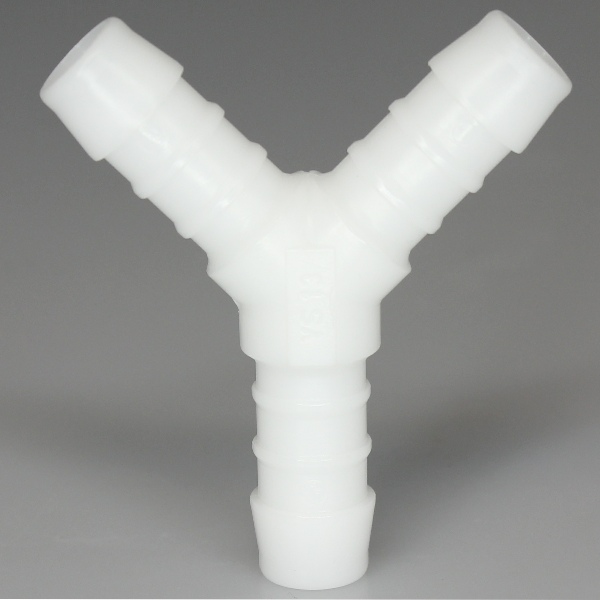

Hose nozzles made of POM | PA6 are characterised by high rigidity, low coefficients of friction, excellent dimensional stability and thermal stability. As an engineering plastic, POM is used in industry for precision parts in particular. The accurate moulding of these hose nozzles clearly demonstrates this. Hose nozzles made of POM have a UL94 flammability rating and can be used at a maximum working pressure of PN 10 bar from -40°C to +80°C (briefly up to +120°C).
