U-PVC hose tail with male solvent socket

SKU: AF0801
Auswahl Steuerzone / Lieferland
from
0,60 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
DN
E
F
L
Price
Quantity

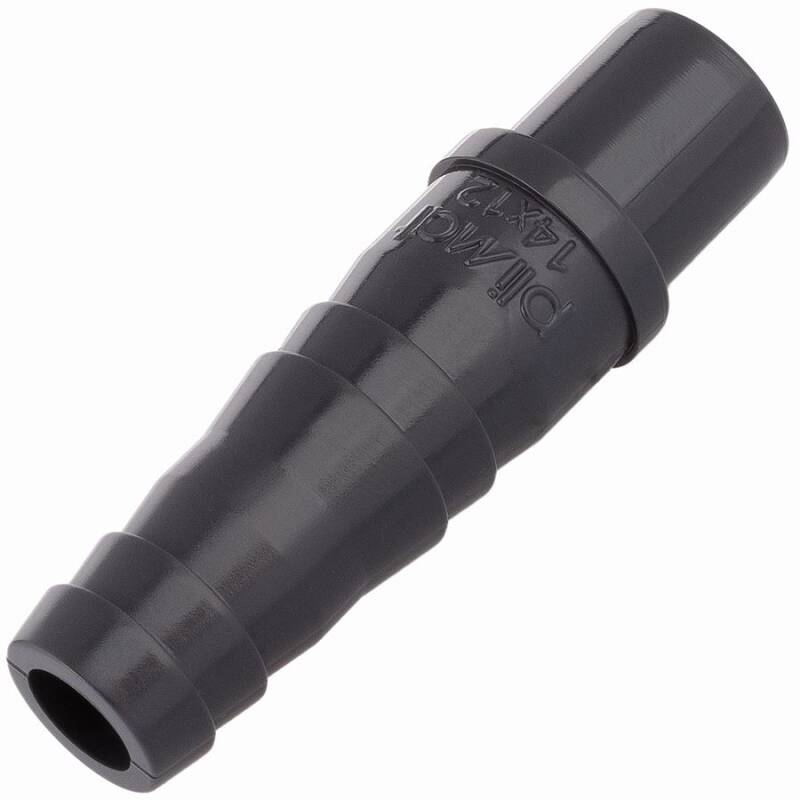

U-PVC hose tail with male solvent socket 12 x 12mm
AF0801.012.012
14 x 12mm
12
15
14/12  (13,5/12,5-11,5/11)
7
7,8
12
51
0,71 €*
pc:

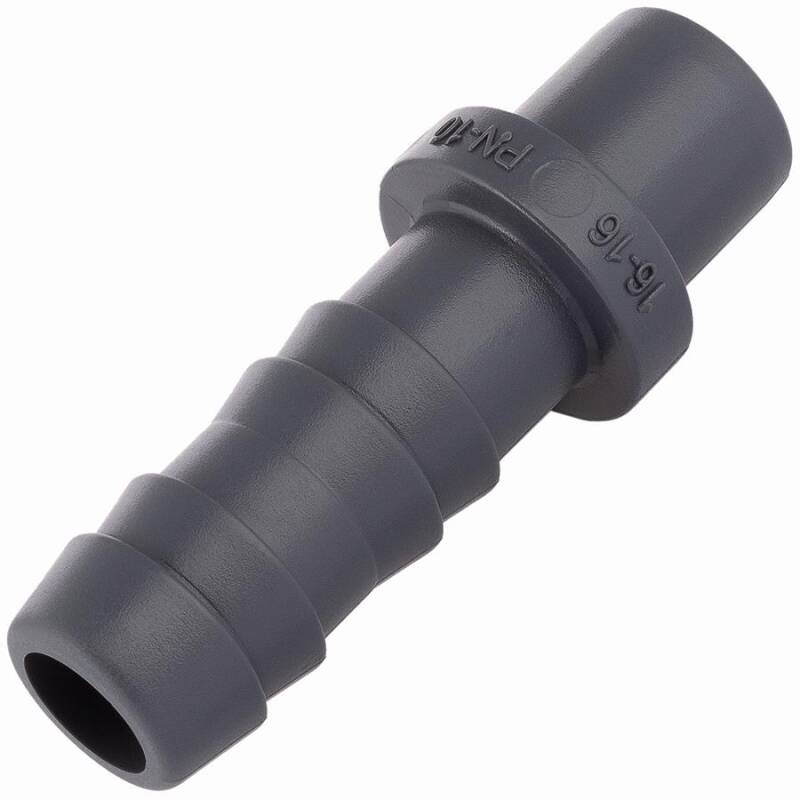

U-PVC hose tail with male solvent socket 16 x 16mm
AF0801.016.016
16 x 16mm
16
22
16  (16,5/14,5)
10
10
14
60
0,60 €*
pc:

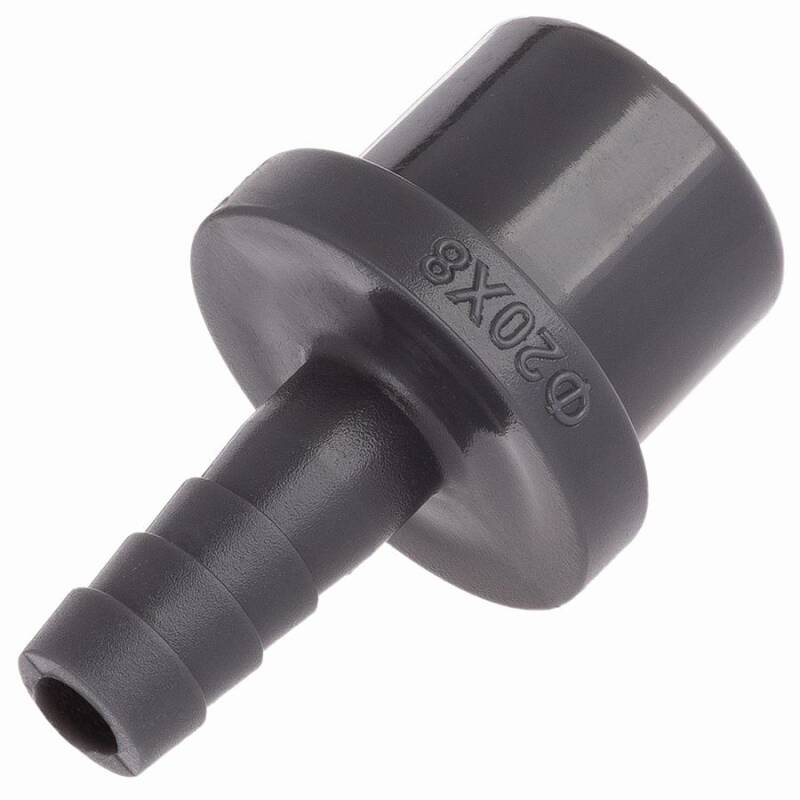

U-PVC hose tail with male solvent socket 20 x 8mm
AF0801.020.008
20 x 8mm
20
26
8  (9/8)
5
15
14
41,5
0,71 €*
pc:

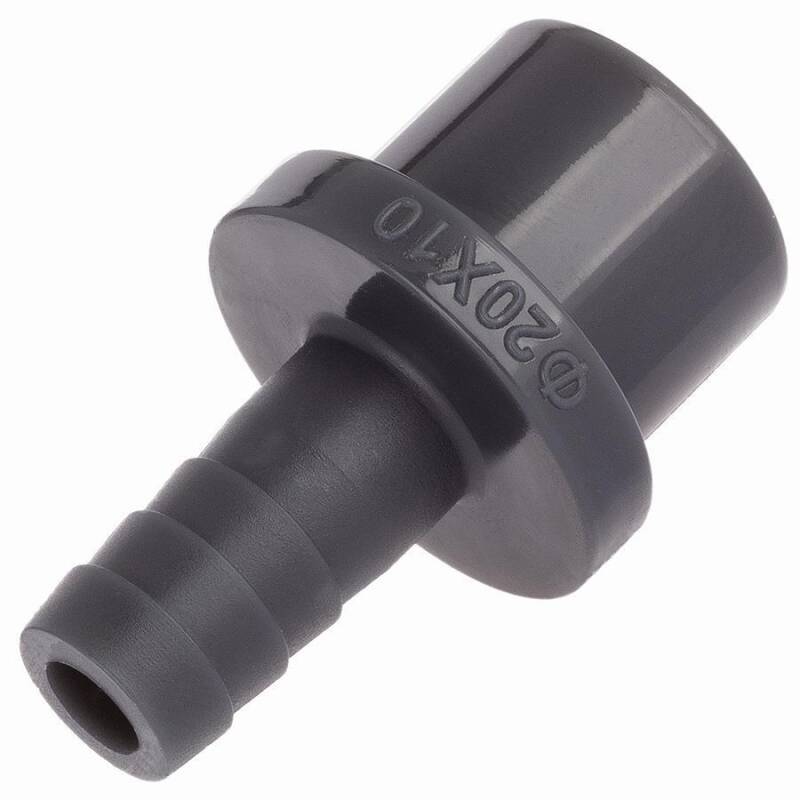

U-PVC hose tail with male solvent socket 20 x 10mm
AF0801.020.010
20 x 10mm
20
26
10  (11/10)
6
15
14
42
0,71 €*
pc:

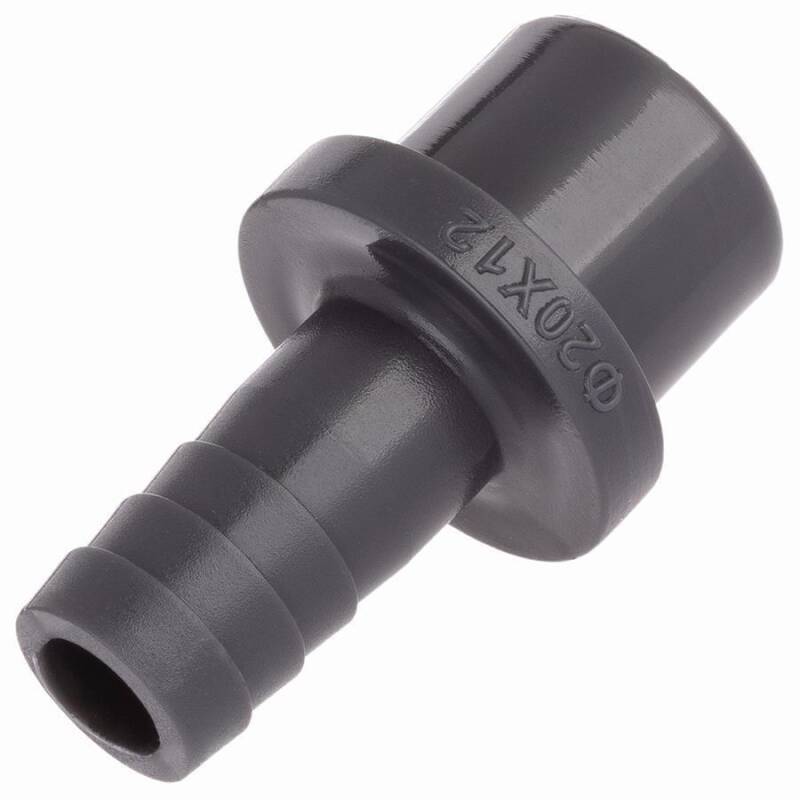

U-PVC hose tail with male solvent socket 20 x 12mm
AF0801.020.012
20 x 12mm
20
26
12  (13/12)
8
15
14
45
0,71 €*
U-PVC hose tail with male solvent socket 20 x 16mm
AF0801.020.016
20 x 16mm
20
26
16  (17/16)
11
15
14
47
0,71 €*

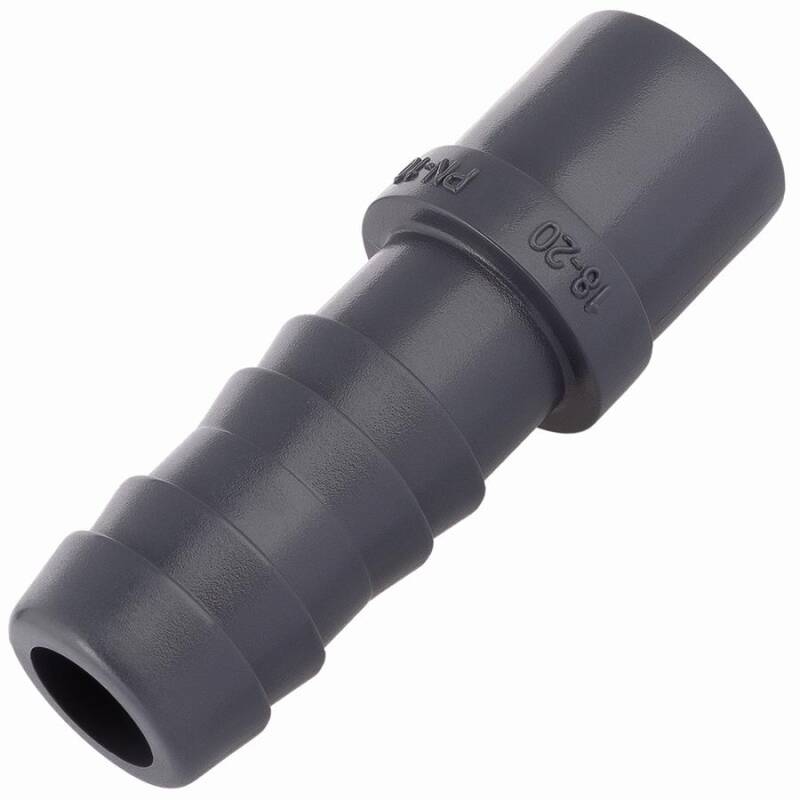

U-PVC hose tail with male solvent socket 20 x 18mm
AF0801.020.018
20 x 18mm
20
22
18  (18,5/16,5)
11
11
16
62
0,92 €*

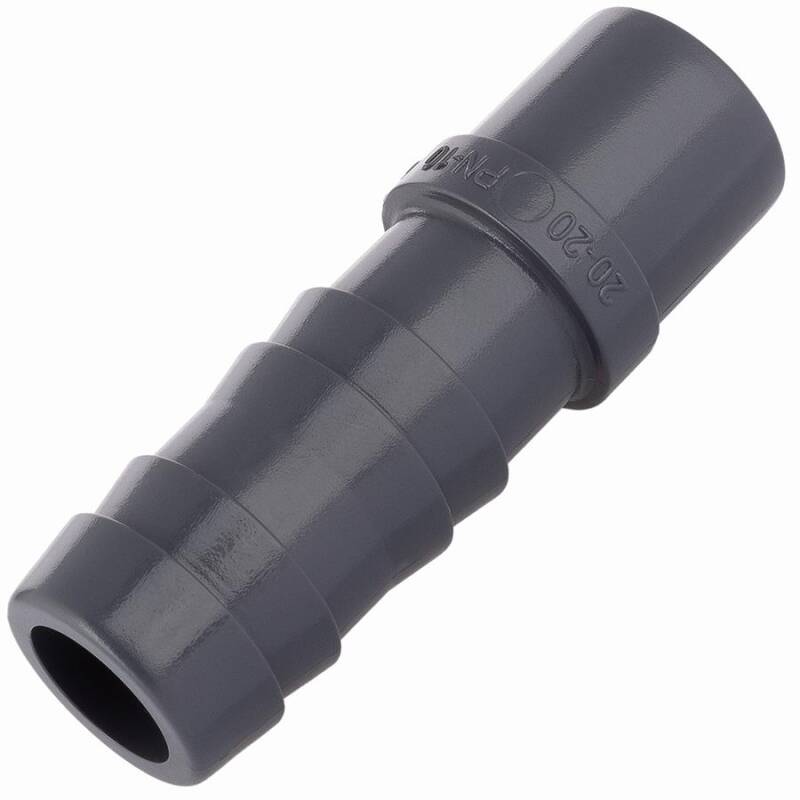

U-PVC hose tail with male solvent socket 20 x 20mm
AF0801.020.020
20 x 20mm
20
22
20  (20,5/18,5)
13
13
16
64,5
0,71 €*
pc:
U-PVC hose tail with male solvent socket 25 x 12mm
AF0801.025.012
25 x 12mm
25
31
12  (13/12)
8
19
16,5
47
0,98 €*
pc:
U-PVC hose tail with male solvent socket 25 x 16mm
AF0801.025.016
25 x 16mm
25
31
16  (17/16)
11
19
16,5
49
0,98 €*
pc:
U-PVC hose tail with male solvent socket 25 x 20mm
AF0801.025.020
25 x 20mm
25
31
20  (20/19)
14
19
16,5
49,5
0,98 €*
pc:

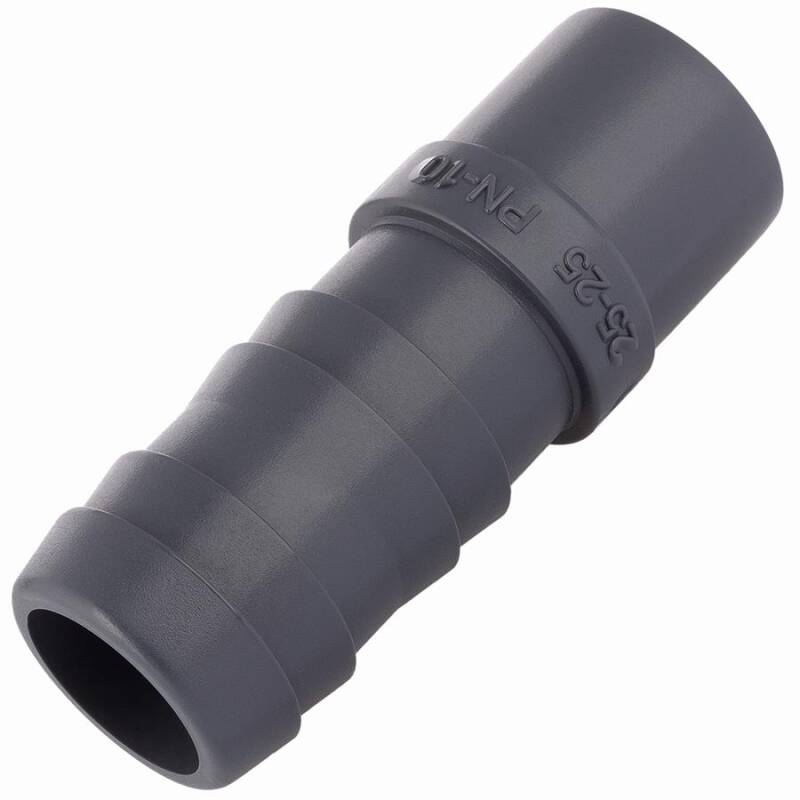

U-PVC hose tail with male solvent socket 25 x 25mm
AF0801.025.025
25 x 25mm
25
27
25  (25,5/23,5)
18
18
18,5
71
0,87 €*
pc:
U-PVC hose tail with male solvent socket 32 x 16mm
AF0801.032.016
32 x 16mm
32
39,5
16  (16/15)
10,5
24
20,5
54
1,20 €*
pc:
U-PVC hose tail with male solvent socket 32 x 20mm
AF0801.032.020
32 x 20mm
32
39,5
20  (20/19)
14
24
20,5
57
1,20 €*
pc:

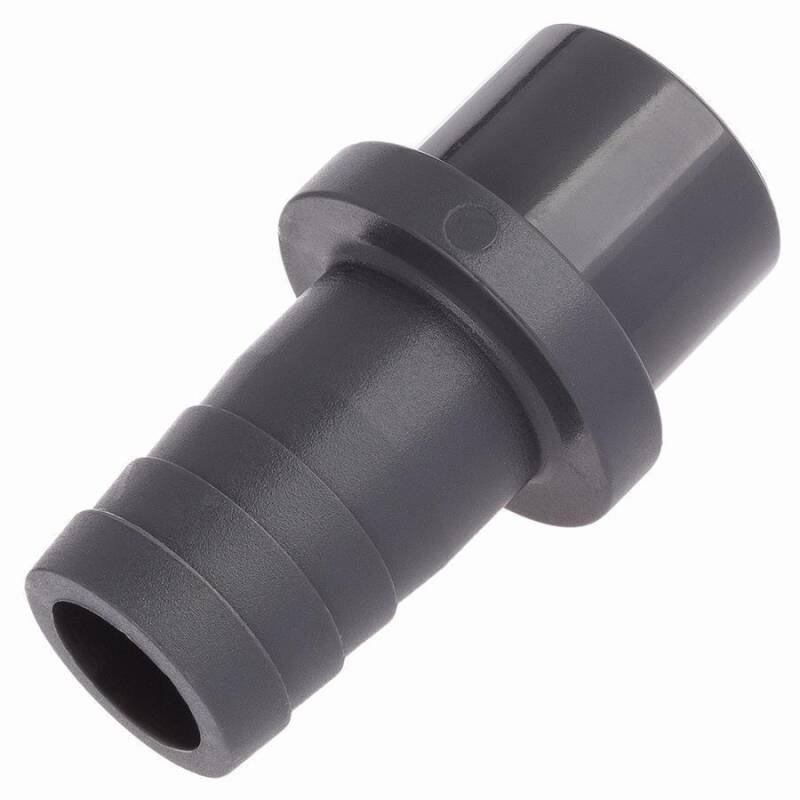

U-PVC hose tail with male solvent socket 32 x 25mm
AF0801.032.025
32 x 25mm
32
39,5
25  (25/24)
17,5
24
20,5
62
1,20 €*
pc:

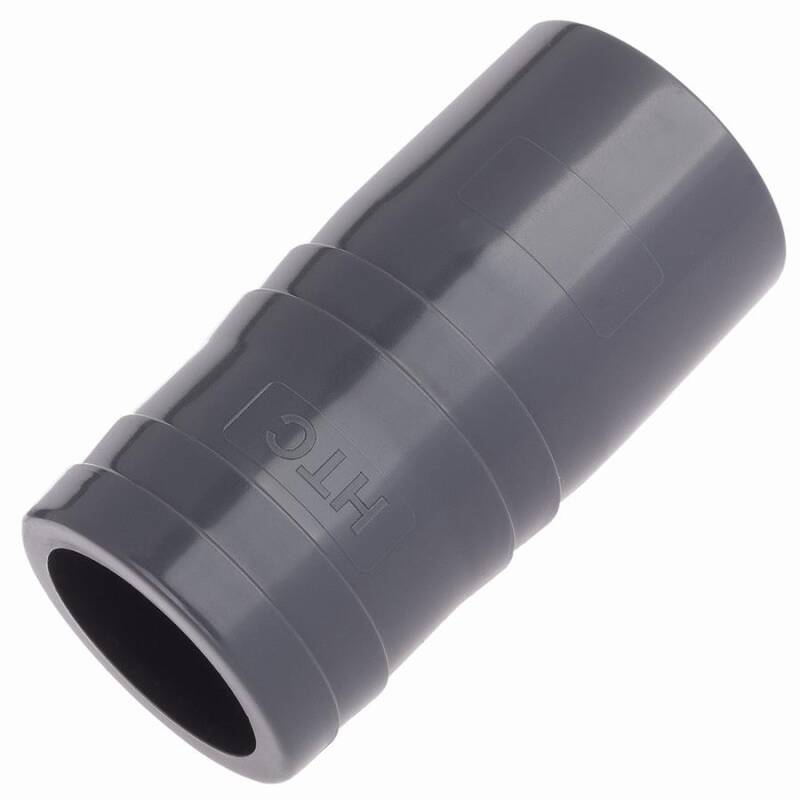

U-PVC hose tail with male solvent socket 32 x 32mm
AF0801.032.032
32 x 32mm
32
---
32  (33/31,5)
24
25
25
65,5
1,11 €*
pc:

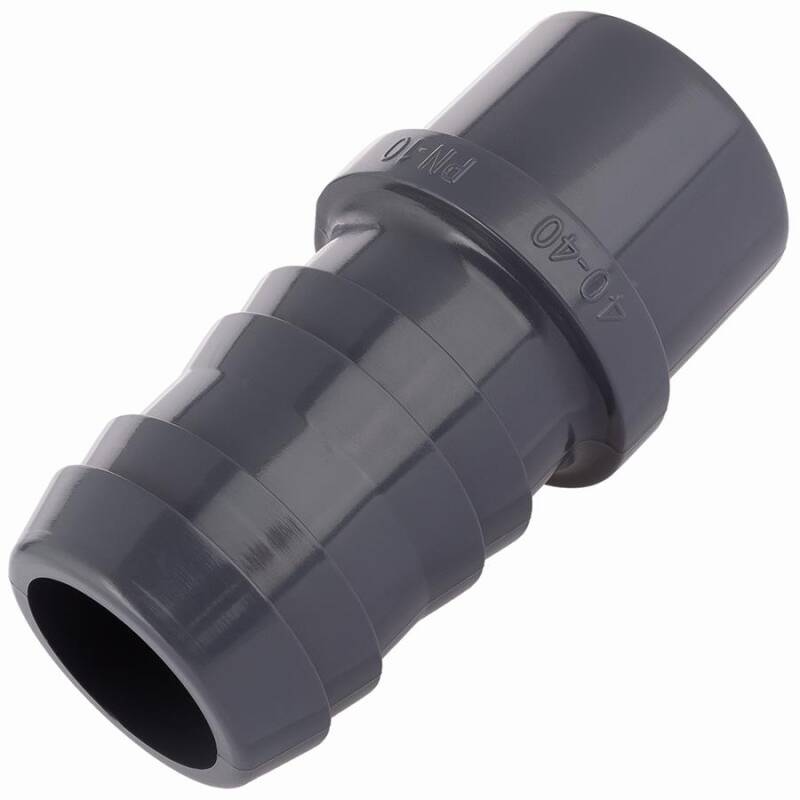

U-PVC hose tail with male solvent socket 40 x 40mm
AF0801.040.040
40 x 40mm
40
46
40  (40/37)
27
32
28
91
1,79 €*
pc:

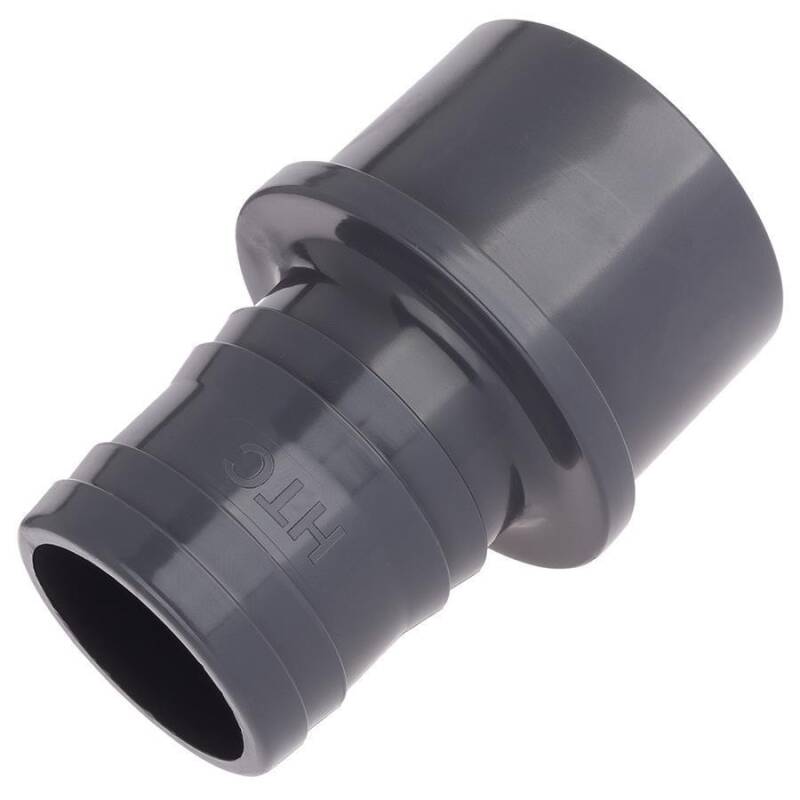

U-PVC hose tail with male solvent socket 50 x 38mm
AF0801.050.038
50 x 38mm
50
56
38  (39,5/37)
31
40
30
79
1,92 €*
pc:

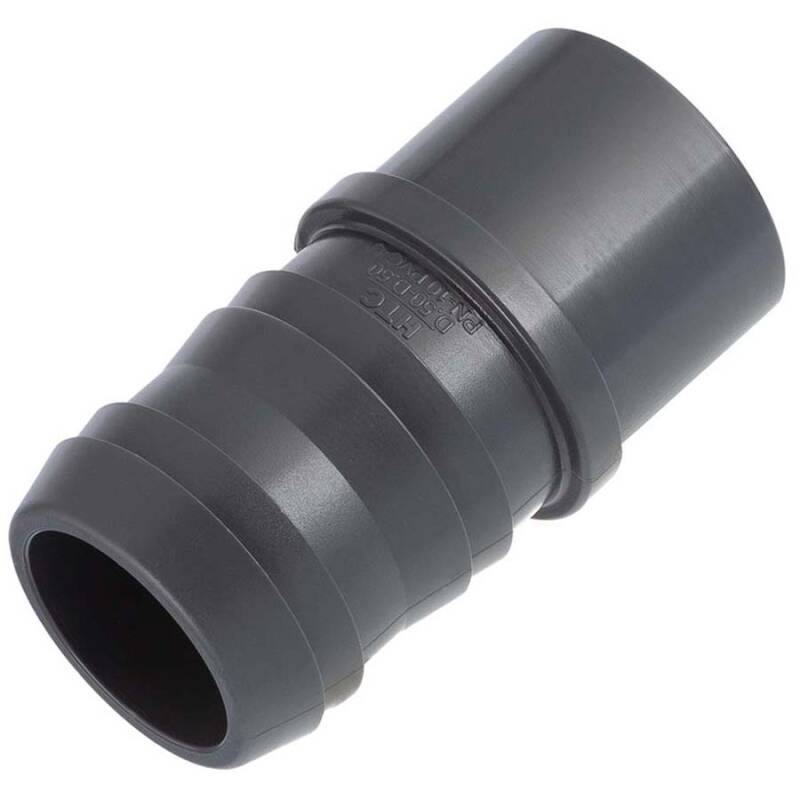

U-PVC hose tail with male solvent socket 50 x 50mm
AF0801.050.050
50 x 50mm
50
54,5
50  (50,5/47)
36,5
40
34,5
102
2,38 €*
pc:

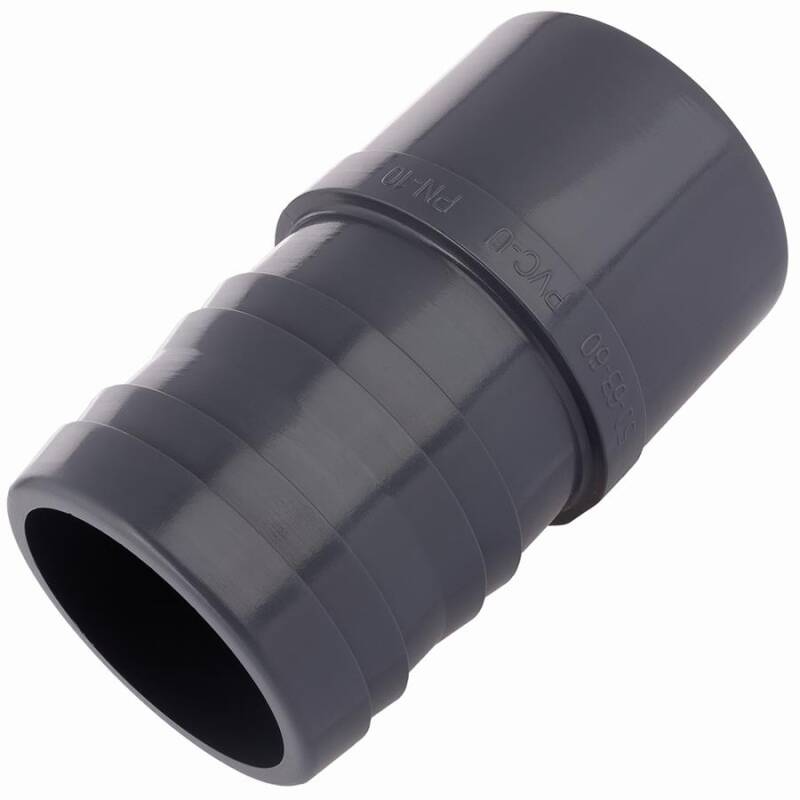

U-PVC hose tail with male solvent socket 63 x 60mm
AF0801.063.060
63 x 60mm
63
65
60  (60,5/58)
51
50
32
109
3,17 €*
pc:

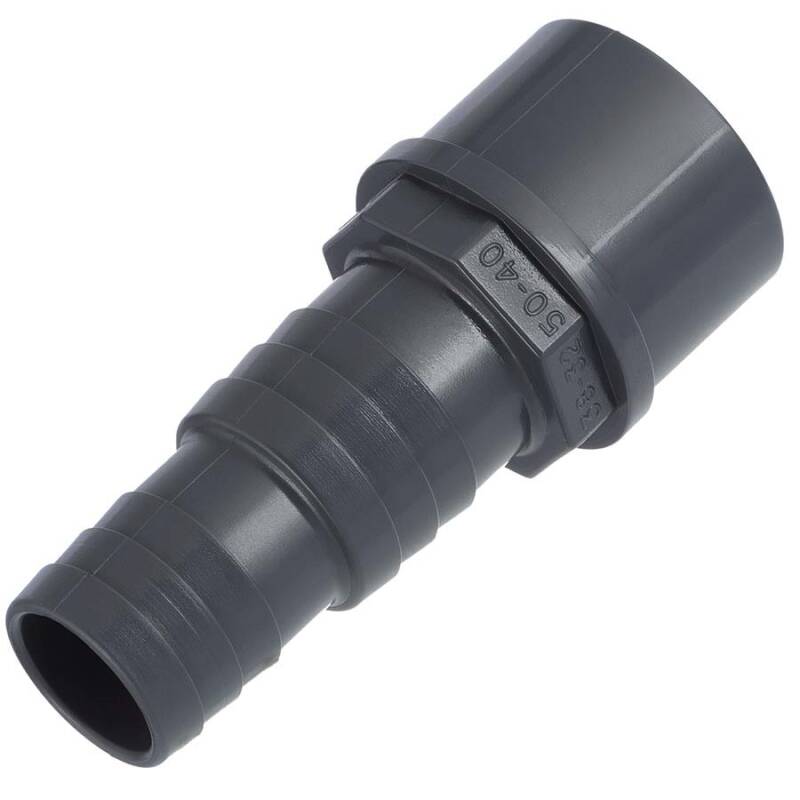

U-PVC hose tail with male solvent socket 50 x 38/32mm
AF0801.050.032
50 x 32/38mm
50
54
38/32  (38/36,5-32,5/31)
25
40
31
122,5
2,53 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Schlauchtülle mit Klebestutzen

Anschluss:
Klebestutzen x Tülle
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
